COLARIS

DIGITAL PILE PRINTING

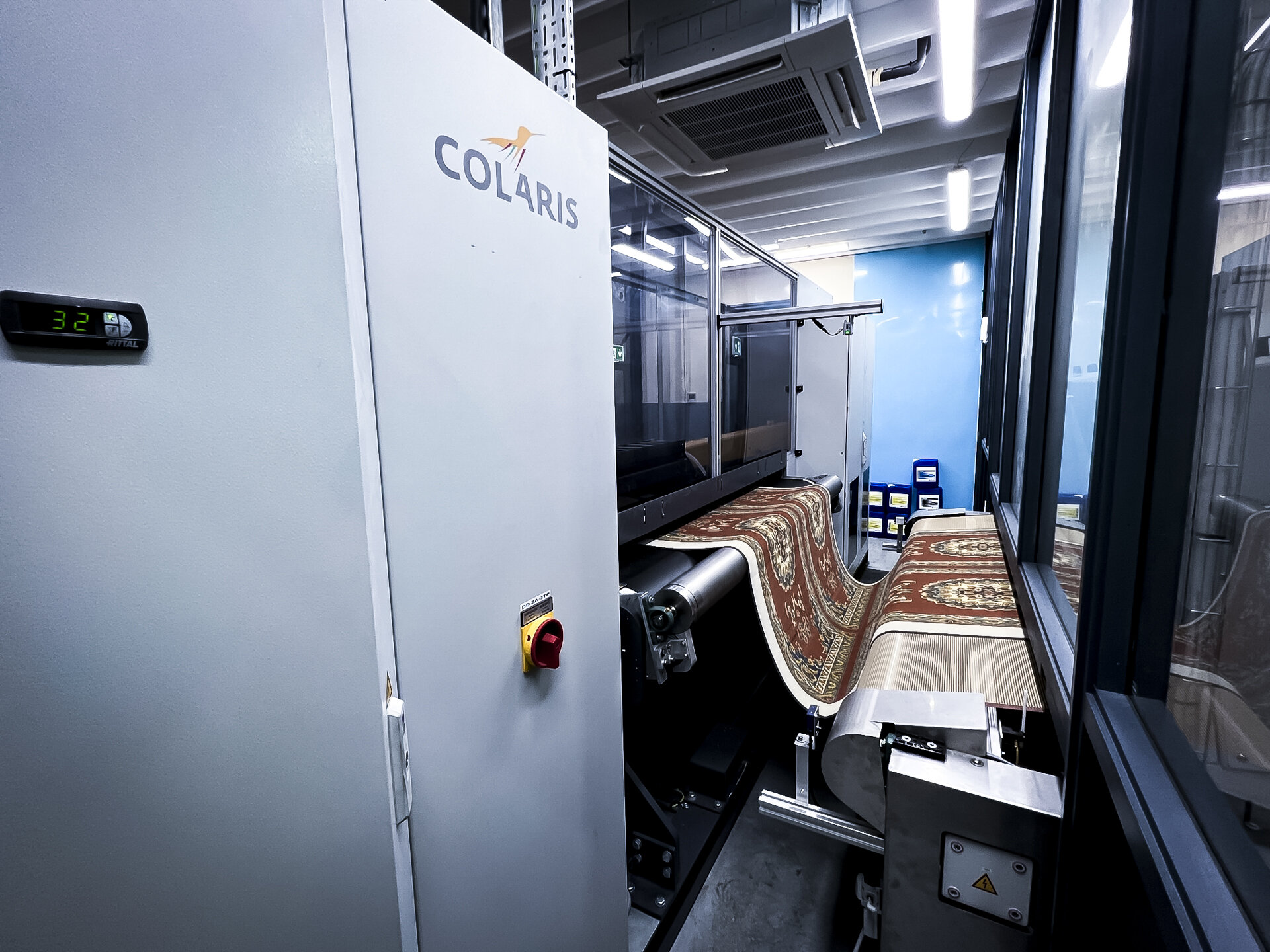

The COLARIS digital textile printer ensures sustainable, high-performance printing on a wide range of pile fabrics. Its modular design allows seamless integration into existing or preferred processing lines. Brilliant print quality, excellent color penetration, and maximum efficiency on polar fleece, plush, raschel blankets and more. Flexible, precise, and economical – tailored to your production needs.

Technical Data

Fabric types

woven, knitted or flocked pile fabrics

Available working widths

1.800, 2.700 & 3.400 mm

Maximum number of colors

12

Maximum number of printheads possible

72

Native printing resolution

400 dpi

Maximum print resolution

3.200 dpi at 2x6 colors and 4 passes
1.600 dpi at 12 colors and 4 passes

Production capacity

Up to 860 m²/h at 2x6 colors and 1 pass printing
Up to 860 m²/h at 12 colors and 1 pass printing

Color setup options

single or double CMYK plus 2 extra colors or functional fluids up to 12 individual process colors or a combination of inks with functional fluids

Dye fixation

saturated steam at 98 – 102 °C, or hot air fixation at 150 to 180 °C, followed by post print washing and drying at 90 - 180 °C

Drying system options

Hot air conveyor dryer, stenter frame or existing

Heating sources

Natural gas, steam, thermal fluid or electric

Operating temperature

90 – 180 °C

Fabric delivery options

Plaited or as existing

Flexible. Precise. Economical.

COLARIS delivers deep, brilliant prints on fleece, plush, and raschel – fully adaptable for maximum print quality and production efficiency.

Blankets

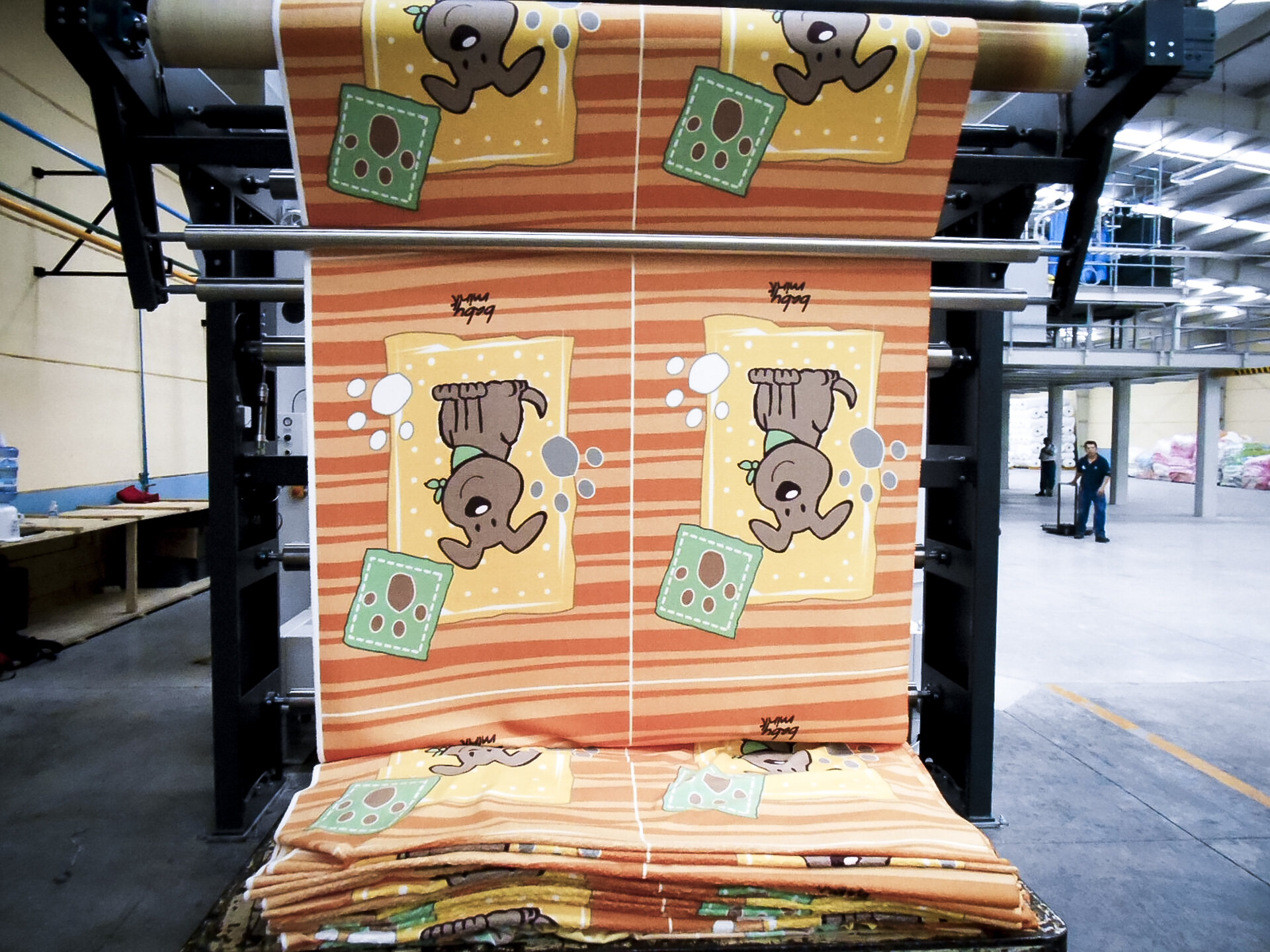

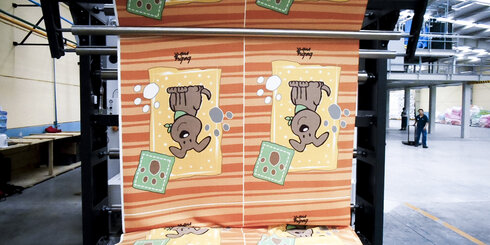

COLARIS prints raschel and fleece blankets with brilliant colors and lasting softness. Precise designs turn your blankets and throws into eye-catching, durable premium products.

Plush & Fleece

COLARIS prints vibrant designs on plush and fleece. Soft fabrics shine with rich colors and detail – perfect for warm, eye-catching, and high-quality winter fashion.

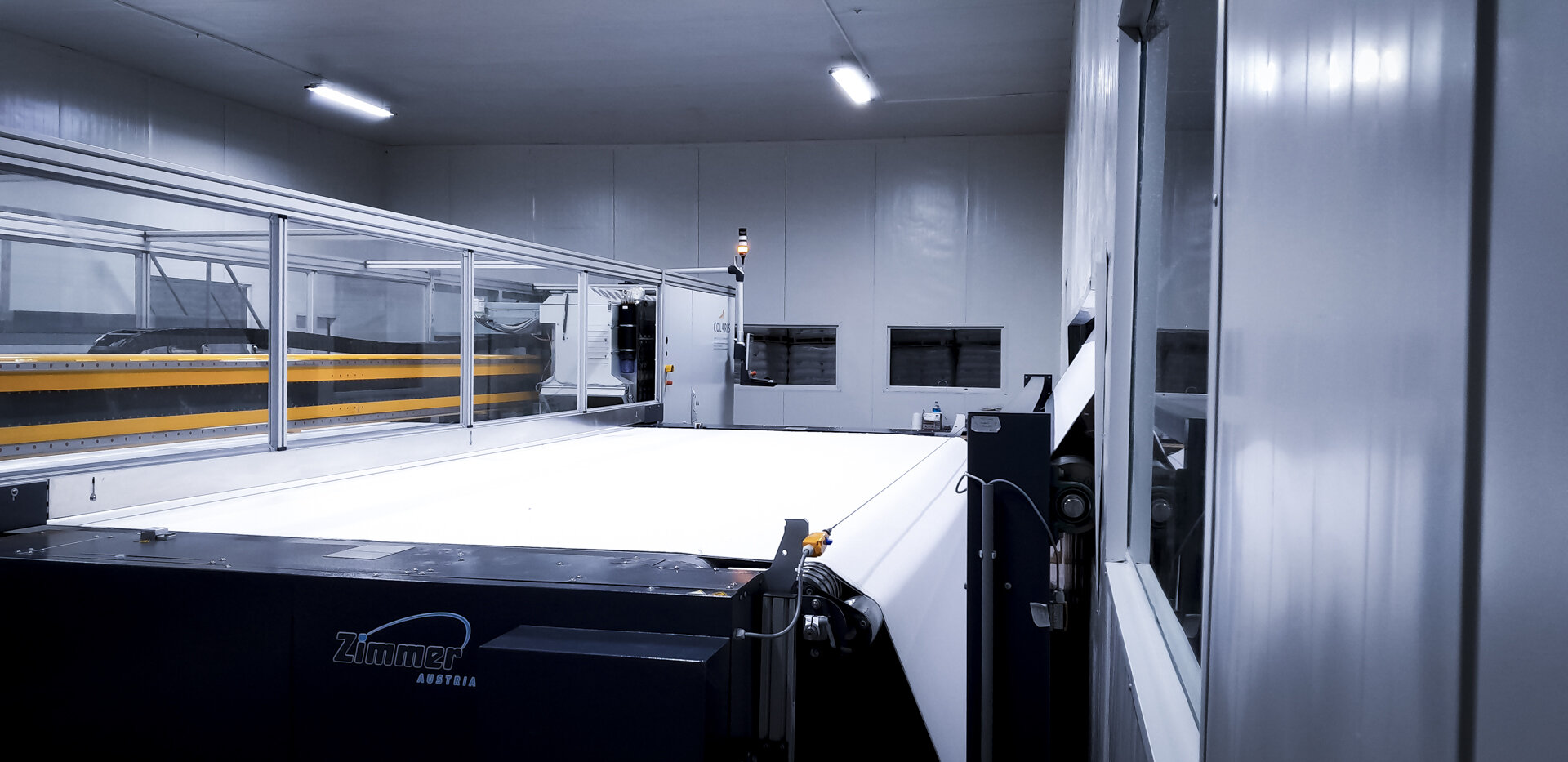

COLARIS PILE PRINTING

The Smart Choice for Sustainable Pile Printing

Discover how COLARIS delivers brilliant, deep-penetrated prints on plush and fleece. Inline pre-treatment ensures top quality, faster processing, and eco-friendly results with a soft touch.

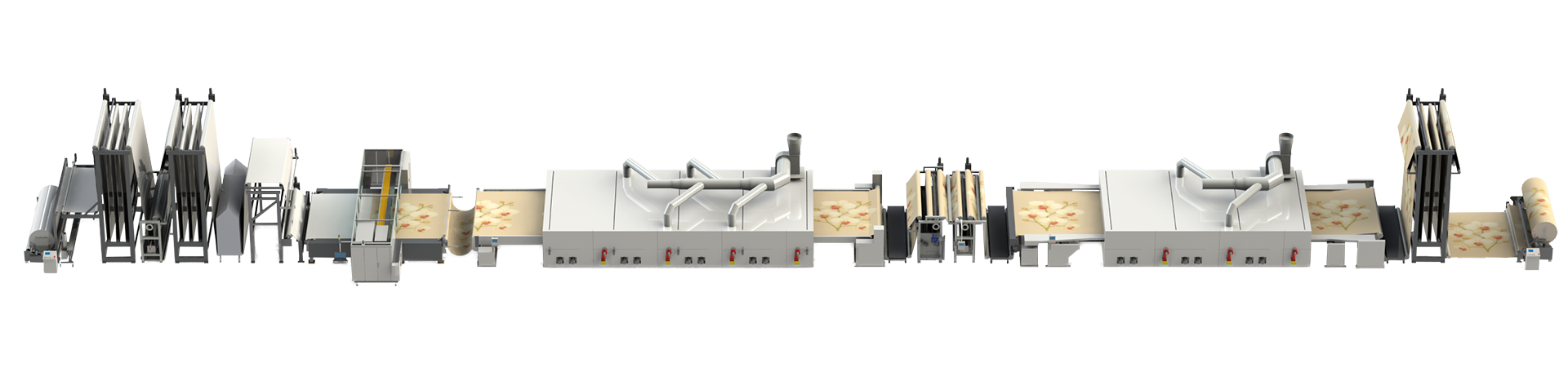

LINE COMPONENTS

Modular Line Components for Maximum Flexibility - Upgrade your COLARIS-PF print line with optional modules tailored for efficient, high-quality printing on any pile substrate – from fleece to plush. Designed for seamless integration and top performance.

A-FRAME
UNWINDER

For maximum efficiency & minimal logistic effort

FABRIC CLEANING
SYSTEMS

Gentle & precise to process requirements

PRE-TREATMENT

Wetting agent application for optimal fabric pile penetration

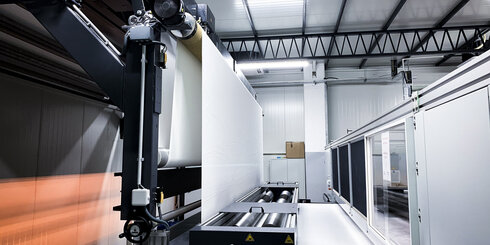

ROLLER COMPENSATOR

Temporary fabric storage for uninterrupted printing production

FABRIC GUIDING SYSTEMS

Material guiding perfectly matching print substrate

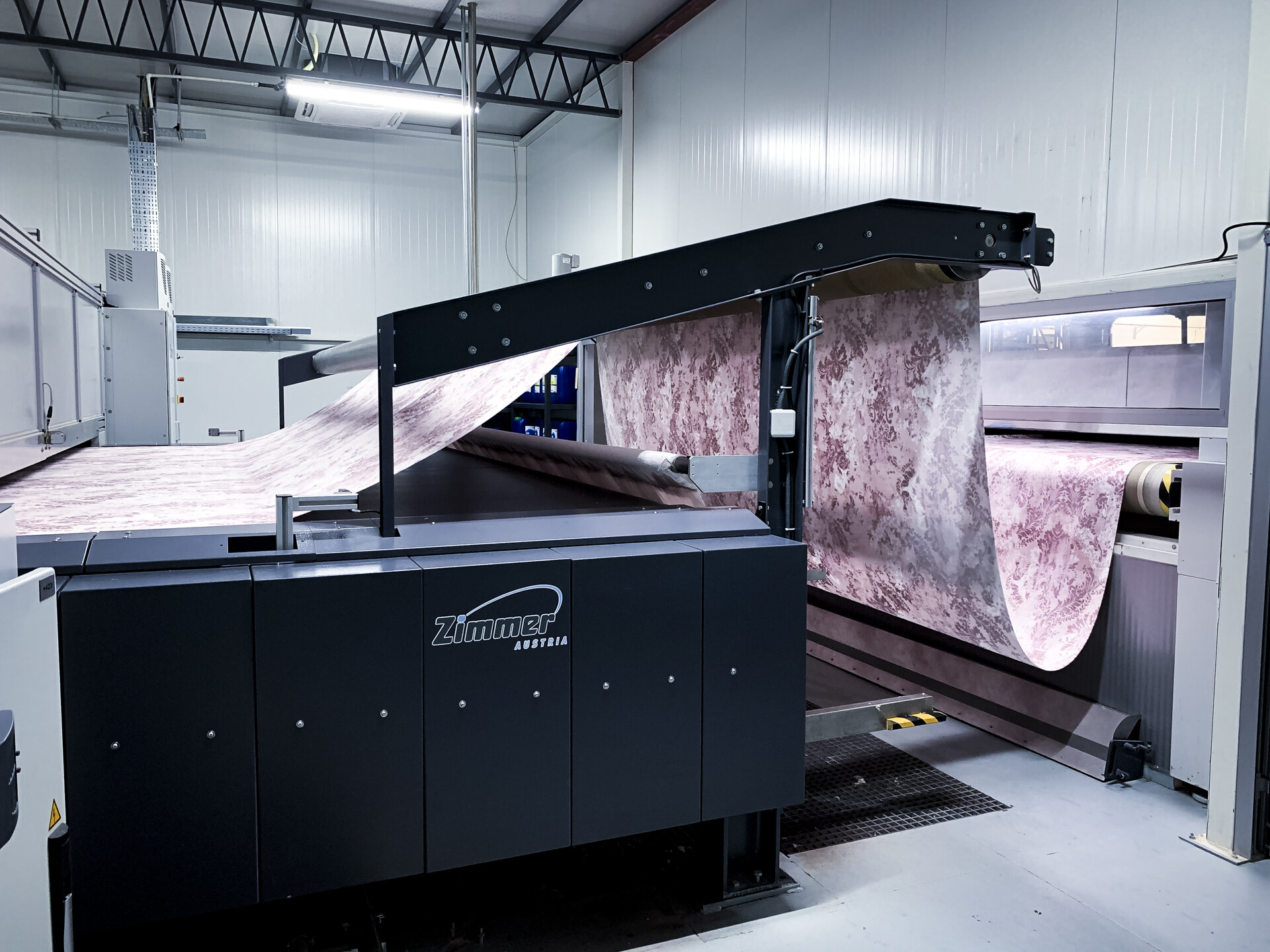

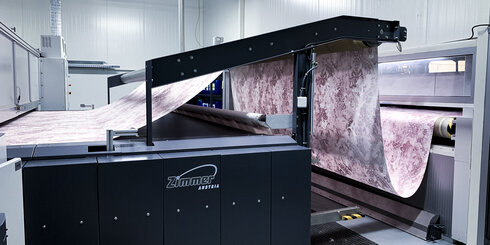

COLARIS
PRINTER

Maximum precision for versatile textile print applications

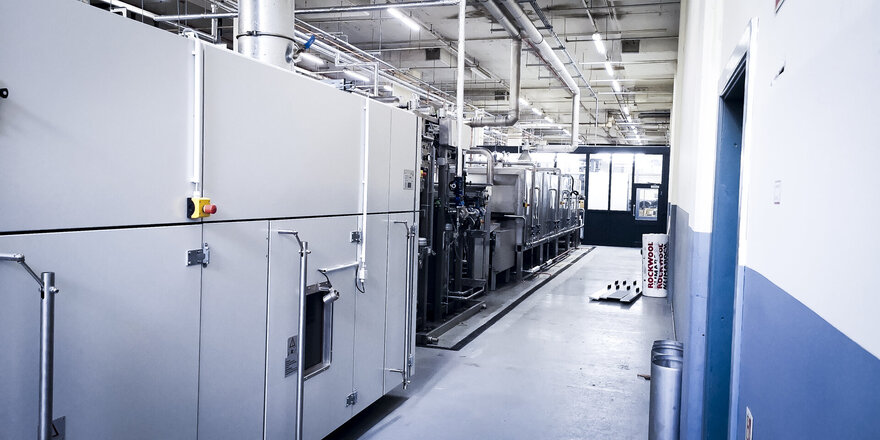

DRYING
SYSTEMS

Tailored to fabric quality & customer specified heating medium

INLINE
WASHER

Multi-stage post-print washer für maximum rub fastness

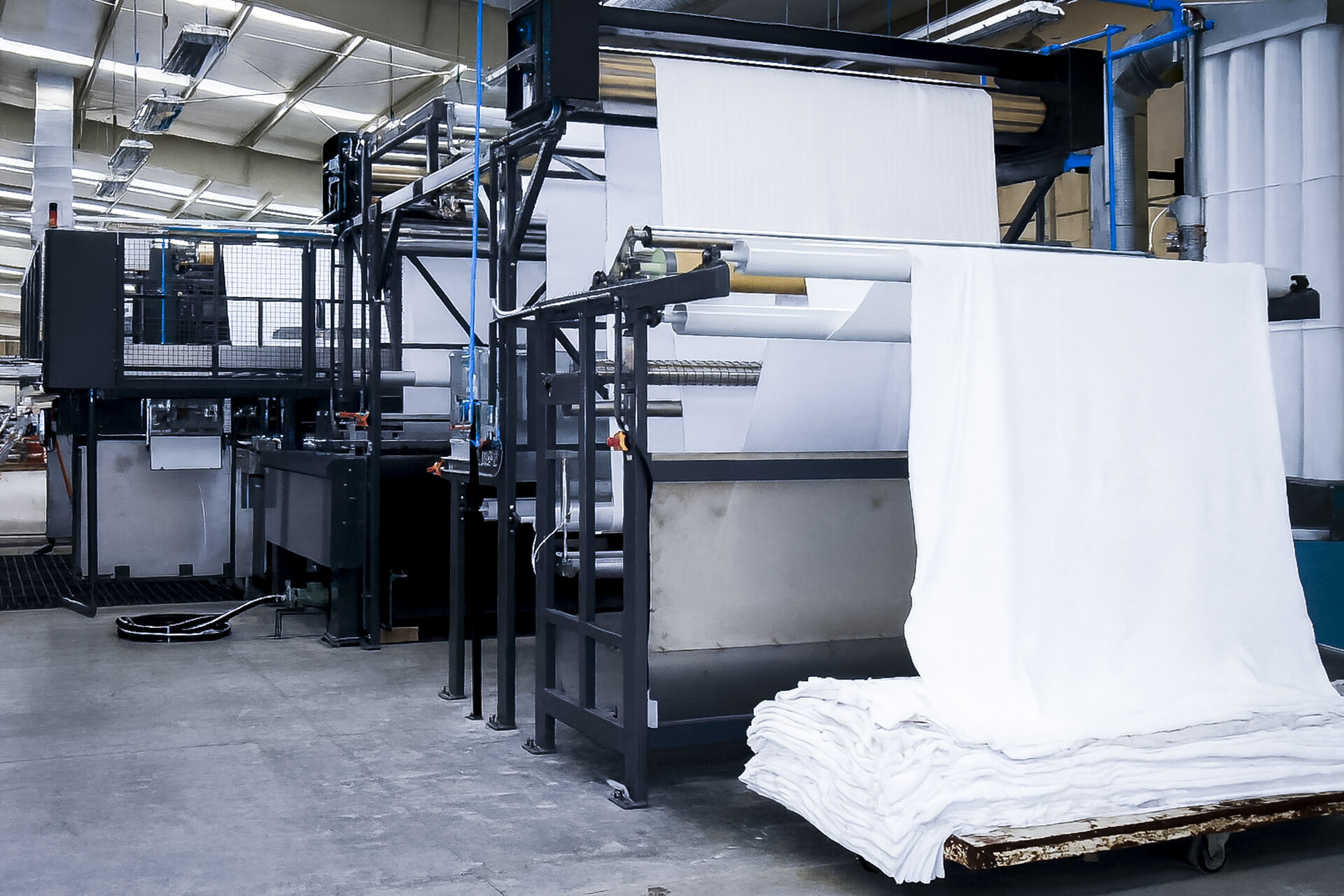

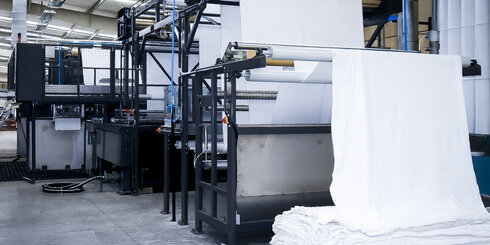

FABRIC
DELIVERY

Fabric output folded or rolled to customer specifications
