Power, Precision & Flexibility

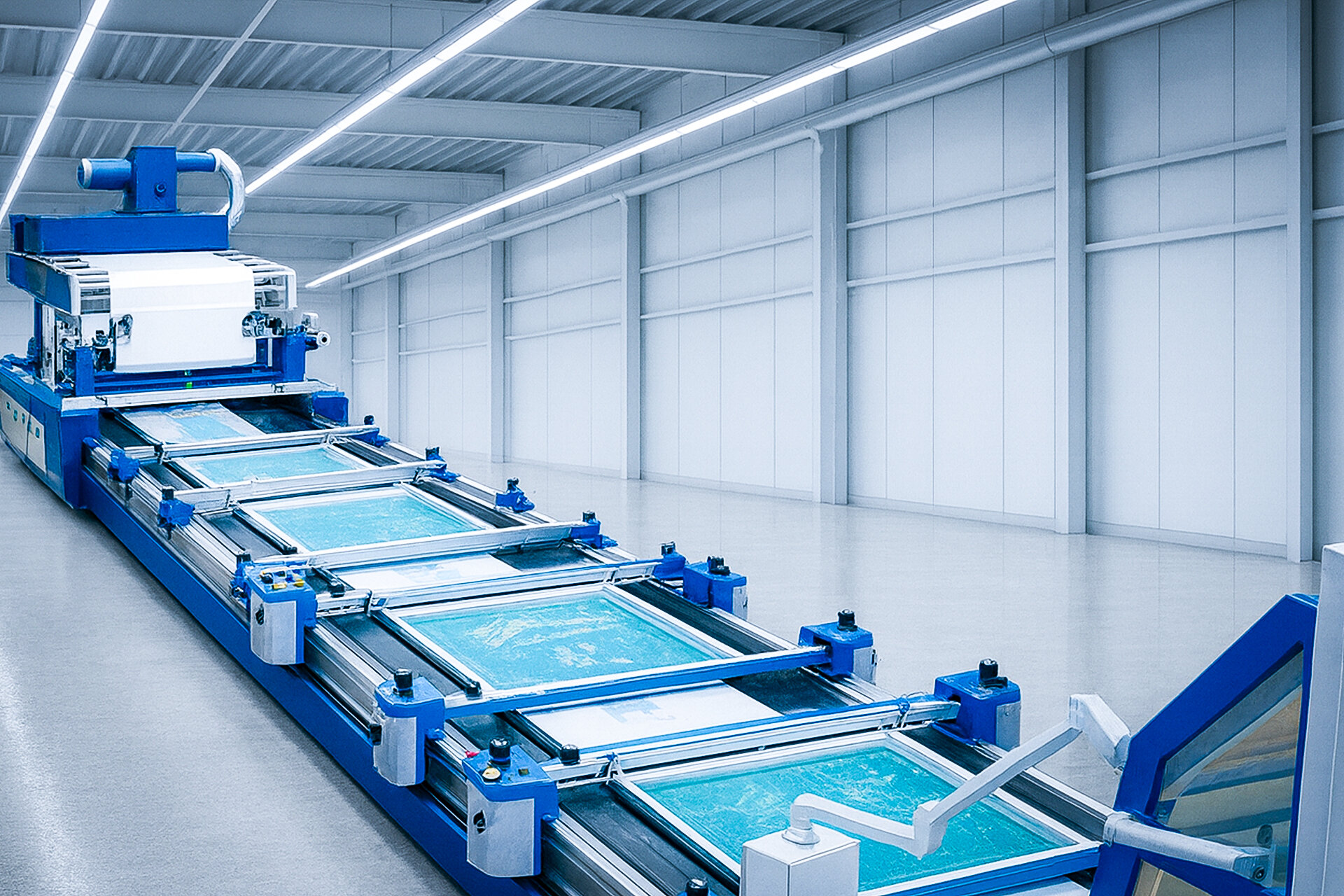

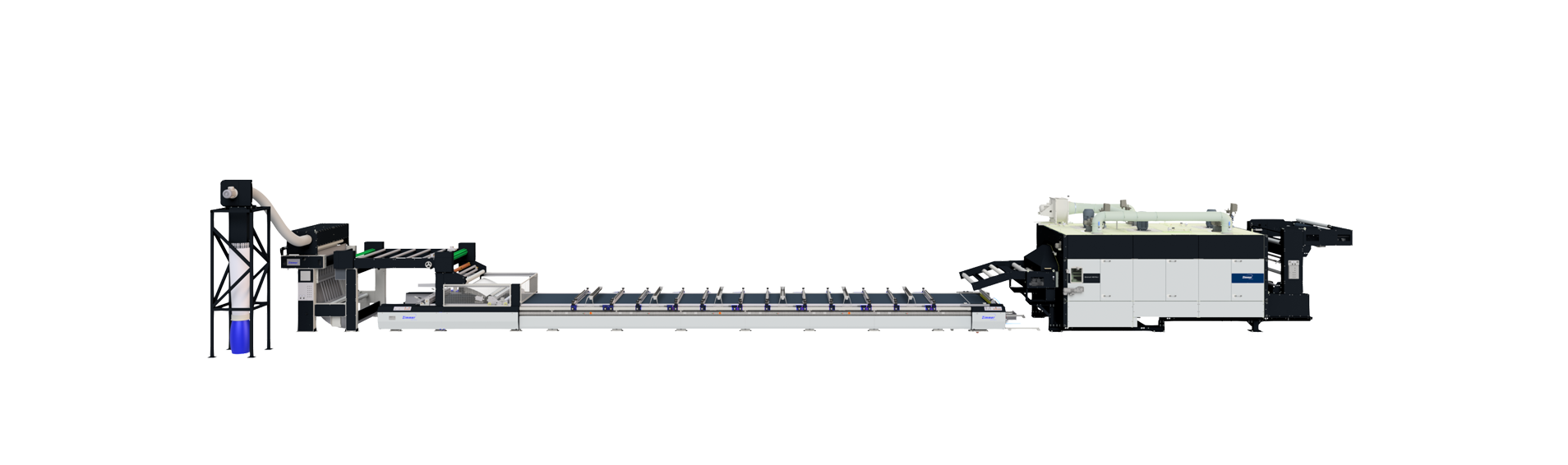

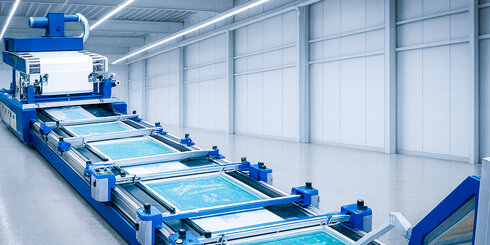

MAGNOPRINT - Flat Screen Printing Machine

The world’s most versatile and fastest flat screen printing machine for all textile fabrics. Each printing station offers individually adjustable repeat length, speed, squeegee strokes, and magnetic power – ensuring maximum flexibility and precision. With printing widths from 165 to 330 cm and up to 24 stations, it meets the highest production demands.

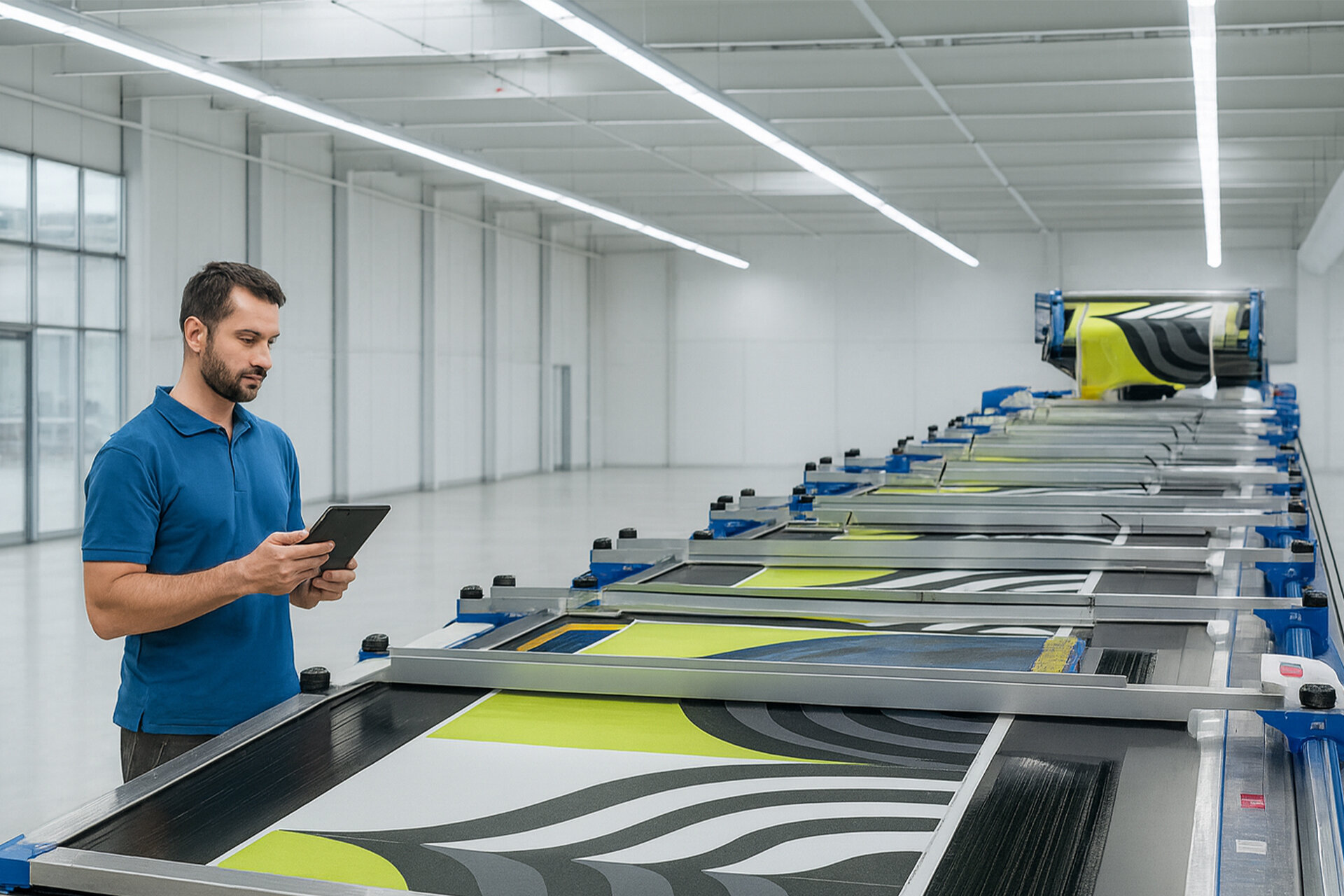

Technician at a Magnojet line from ZIMMER AUSTRIA, standing in a modern production hall and supervising the manufacturing process.

Unmatched Flexibility: ZIMMER Flat Screen Printing with MAGNET SYSTEM PLUS

Magnet System Plus

The original ZIMMER MAGNET SYSTEM PLUS guarantees efficient magnetic roll rod printing in warp direction. Depending on fabric needs, magnet bars are available as Standard (MB 38/40), Strong (SMP 70/55 for towels), or Extra Strong (ESMP 70/95 for acrylic and polyester blankets).

    • ZIMMER MAGNET SYSTEM PLUS – Precision with Magnetic Single Roll Rod

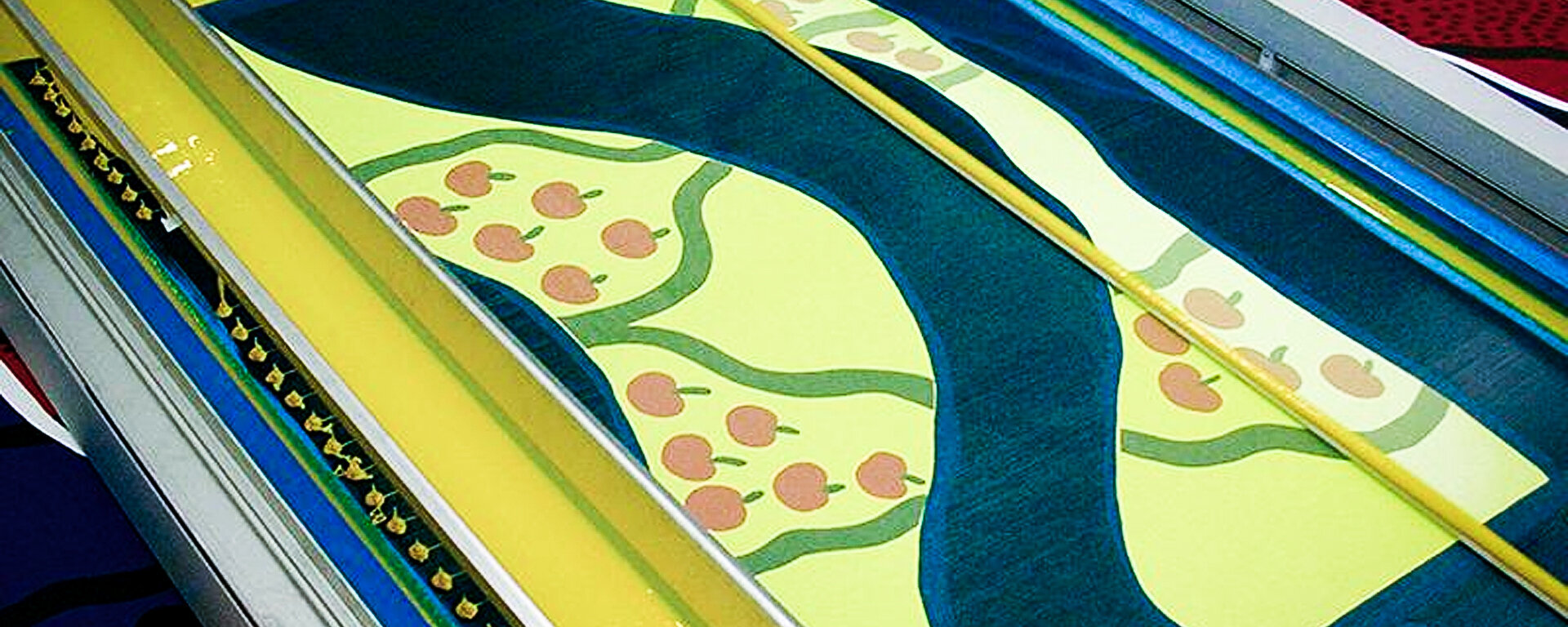

      Magnetic Single Roll Rod

      Choose from a wide range of diameters between 6 to 50 mm. The repeat length is flexibly adjustable from 60 to 600 cm. Each magnet bar carriage is powered by an individual servo drive with stepless speed control – ensuring maximum precision and efficiency in textile printing.

    • ZIMMER MAGNET SYSTEM PLUS – Twin Roll Rod System for Maximum Precision

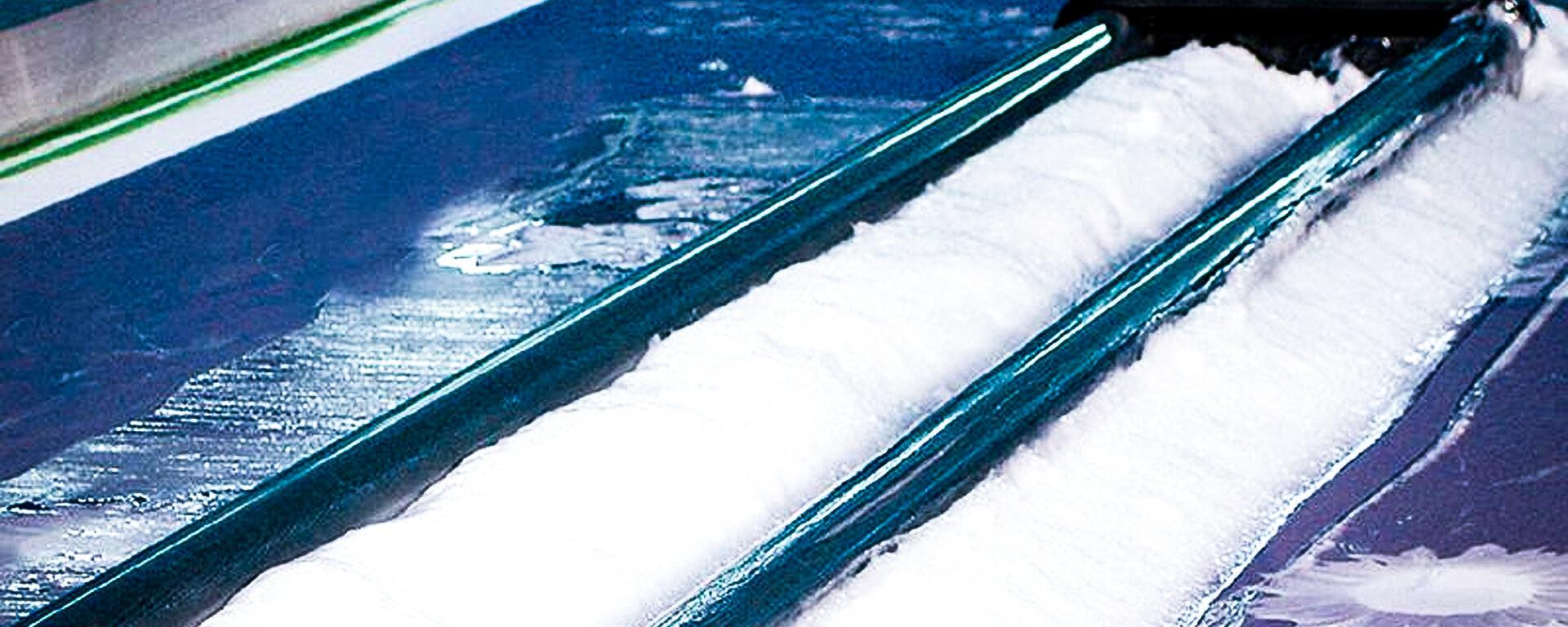

      Twin Roll Rod System

      This printing method ensures deeper color penetration at higher production speeds than any alternative. Choose from a wide range of diameters between 30 to 50 mm. Large-diameter hollow roll rods guarantee intense coloration and perfect reproducibility for repeat orders.

Technical Data

Available working widths

165 / 185 / 225 / 250 / 285 / 330 cm

Number of printing stations

Up to 24

Repeat size adjustment

From 60 cm to 600 cm

Printing speed

Up to 30 meters per minute

Effective printing length

8 m up to 60 m

Printing direction

in warp direction

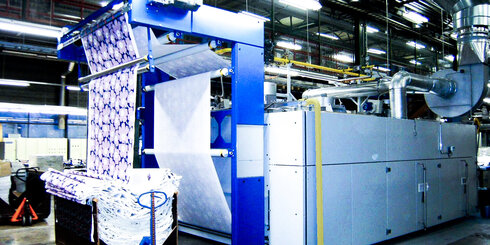

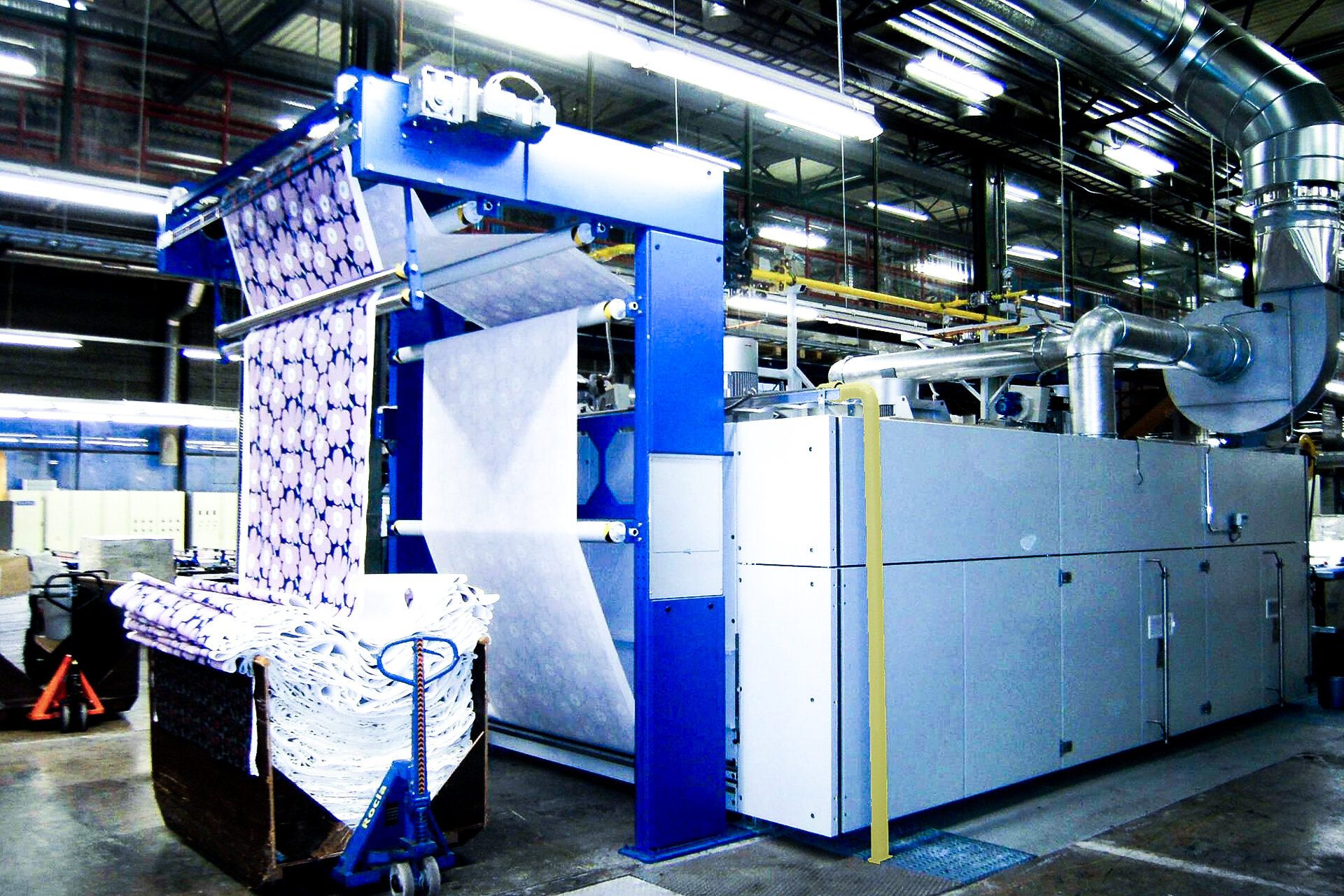

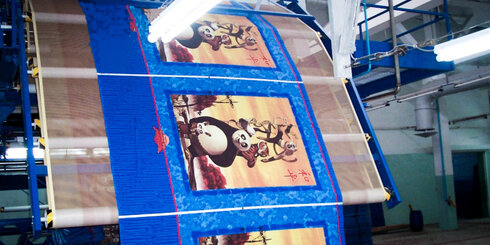

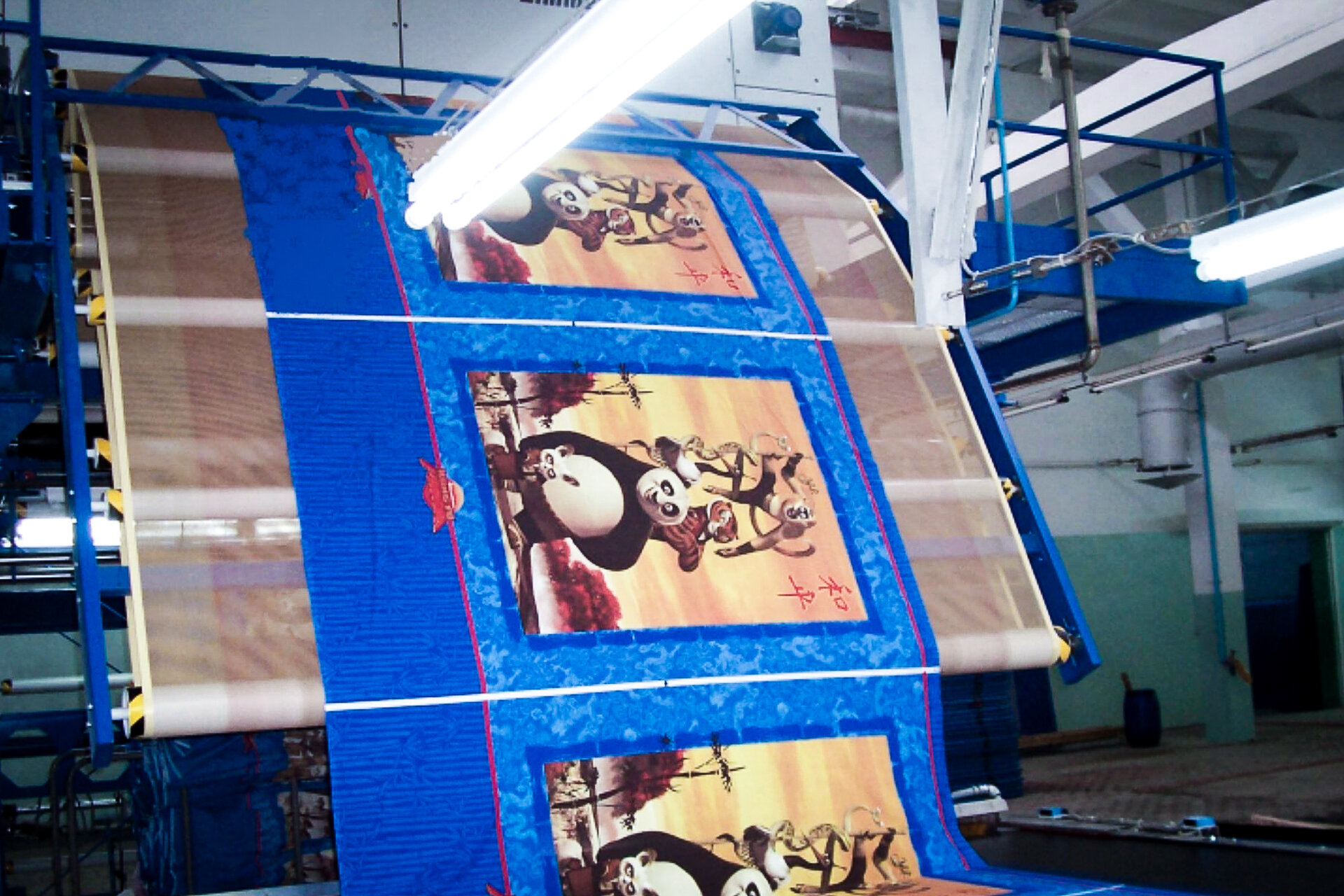

Dryer

Various dryer layouts for all kinds of fabrics

APPLICATIONS

The ROTASCREEN delivers high-speed rotary screen printing for home textiles, wall coverings, technical fabrics, nonwovens and more.

Home
Textile

Home Textiles by ZIMMER AUSTRIA: Our advanced digital, rotary and flatbed printing plus coating and finishing systems create vibrant, durable fabrics for upholstery, curtains, bed linen and tableware – with flexible drying, steaming and wet finishing options.

Apparel, Knits &
Clothing

ZIMMER AUSTRIA transforms the apparel market with bespoke digital and screen printing for menswear, womenswear, childrenswear, underwear and sleepwear. With COLARIS, ROTASCREEN, MAGNOPRINT, THERMOCURE, MODUS and MAGNOROLL, we deliver precision, durability and standout fashion quality.

Terry
Products

ZIMMER AUSTRIA delivers premium printing solutions for terry towels, bathmats and bathrobes. With COLARIS, MAGNOPRINT, ROTASCREEN, THERMOCURE and MODUS, you achieve aesthetic yet functional designs on terry fabrics – perfect for luxury bathroom and beach products.

Pile
Fabrics

ZIMMER AUSTRIA delivers advanced printing solutions for blankets, plush and fleece. With ROTASCREEN, MAGNOPRINT, COLARIS, THERMOCURE and MODUS, you achieve crisp designs and vibrant colors that stand out beautifully on soft, fluffy materials.

Military
Textiles

ZIMMER AUSTRIA provides customized solutions for military textiles – from uniforms to performance and armor fabrics. With ROTASCREEN, MAGNOPRINT, COLARIS, MAGNOROLL, THERMOCURE and MODUS, we ensure robust printing, durable coatings and precise finishing for the defense industry.

Combining Tradition with Innovation

MAGNET SYSTEM PLUS
ROLL ROD TECHNOLOGY

ROTASCREEN printing machines with ZIMMER MAGNET SYSTEM PLUS are designed in modular constructions, in order to ensure high quality results with single- or multi-colour printing on different substrates.

Take advantage of pioneering ZIMMER AUSTRIA technologies like the world-famous MAGNET SYSTEM PLUS ROLL ROD TECHNOLOGY. This innovation combines the benefits of the Magnet System with the traditional Blade technique and ensures uniform application across the full working width.

Logo von Zimmer Magnet System Plus
Downloads

Click the document preview to open the online flip catalog.
Use the download button to get the print catalog as a PDF.

Magnoprint - Flat screen printer
MAGNOPRINT Flat Screen Printer from Zimmer Austria
pdf
8 MB
