COLARIS

PRINTER FOR NEEDLE FELT – PES

PES needlefelt carpets are ideal for temporary use, such as event flooring or red carpet solutions. They require vivid colors, sharp prints, and large repeats. COLARIS technology delivers outstanding brilliance, and long pattern repeats. The eco-friendly and cost-efficient printing process, perfect for high-impact, budget-conscious carpet production.

Technical Data

Fabric types

Needlefelt flooring substrates

Available working widths

3.400, 4.200 & 5.200 mm

Maximum number of colors

12

Maximum number of printheads possible

96

Native printing resolution

400 dpi

Maximum print resolution

3.200 dpi at 2x6 colors and 4 passes
1.600 dpi at 12 colors and 4 passes

Production capacity COLARIS

Up to 1.200 m²/h at 2x6 colors and 1 pass printing
Up to 600 m²/h at 12 colors and 2 pass printing

Color setup options

single or double CMYK plus 2 extra colors or functional fluids up to 12 individual process colors or a combination of inks with functional fluids

Dye fixation

hot air fixation at 150 to 180 °C, optional post print washing followed by drying at 90 - 150 °C

Drying system options

Hot air conveyor dryer, or stenter frame

Heating sources

Natural gas, steam, thermal fluid

Operating temperature

150 – 200 °C

Fabric delivery options

rolling on small batches or A-frames

BRILLIANCE. RESOLUTION. IMPACT.

COLARIS prints PES event carpets with brilliant colors, high resolution, and large repeats – perfect for red carpet and temporary flooring.

NEEDLE FELT
CARPETS

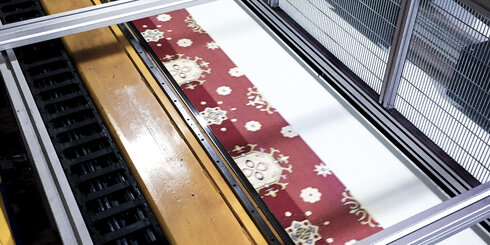

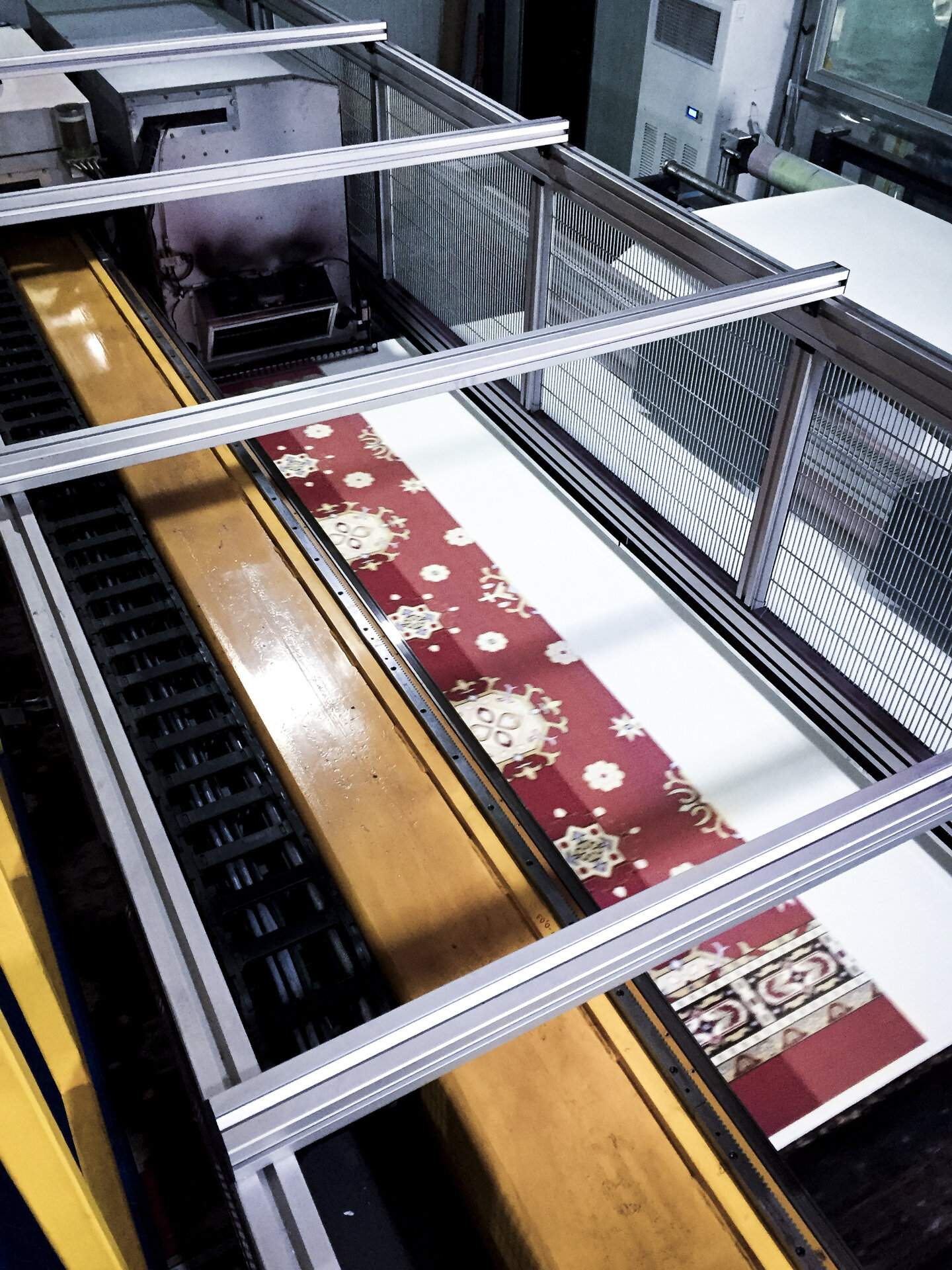

COLARIS enables brilliant digital printing on flat and velour needle felt carpets. High resolution, vibrant colors – fast, cost-efficient, eco-friendly, and ideal for promotion flooring.

PRINTER FOR NEEDLEFELT

The best choice for vivid colors on needlefelt carpets

COLARIS enables brilliant digital printing on flat and velour needlefelt carpets. High resolution, vibrant colors – fast, cost-efficient, eco-friendly, and ideal for promotion flooring.

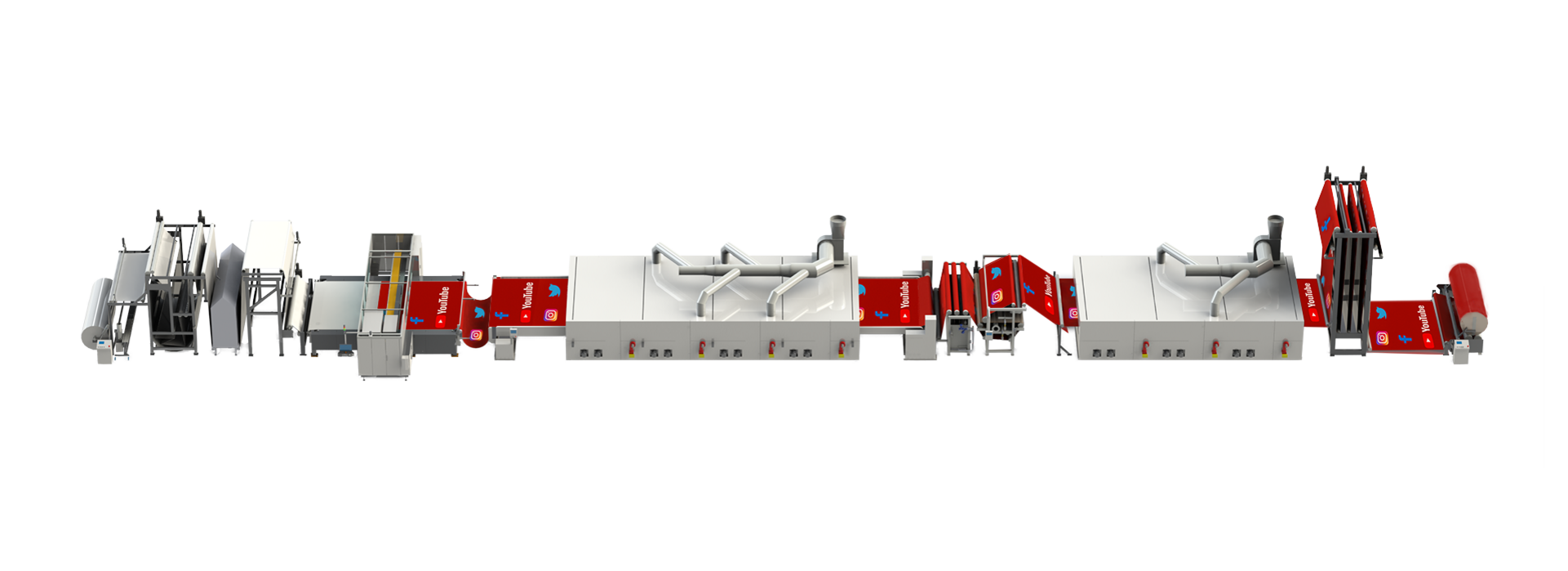

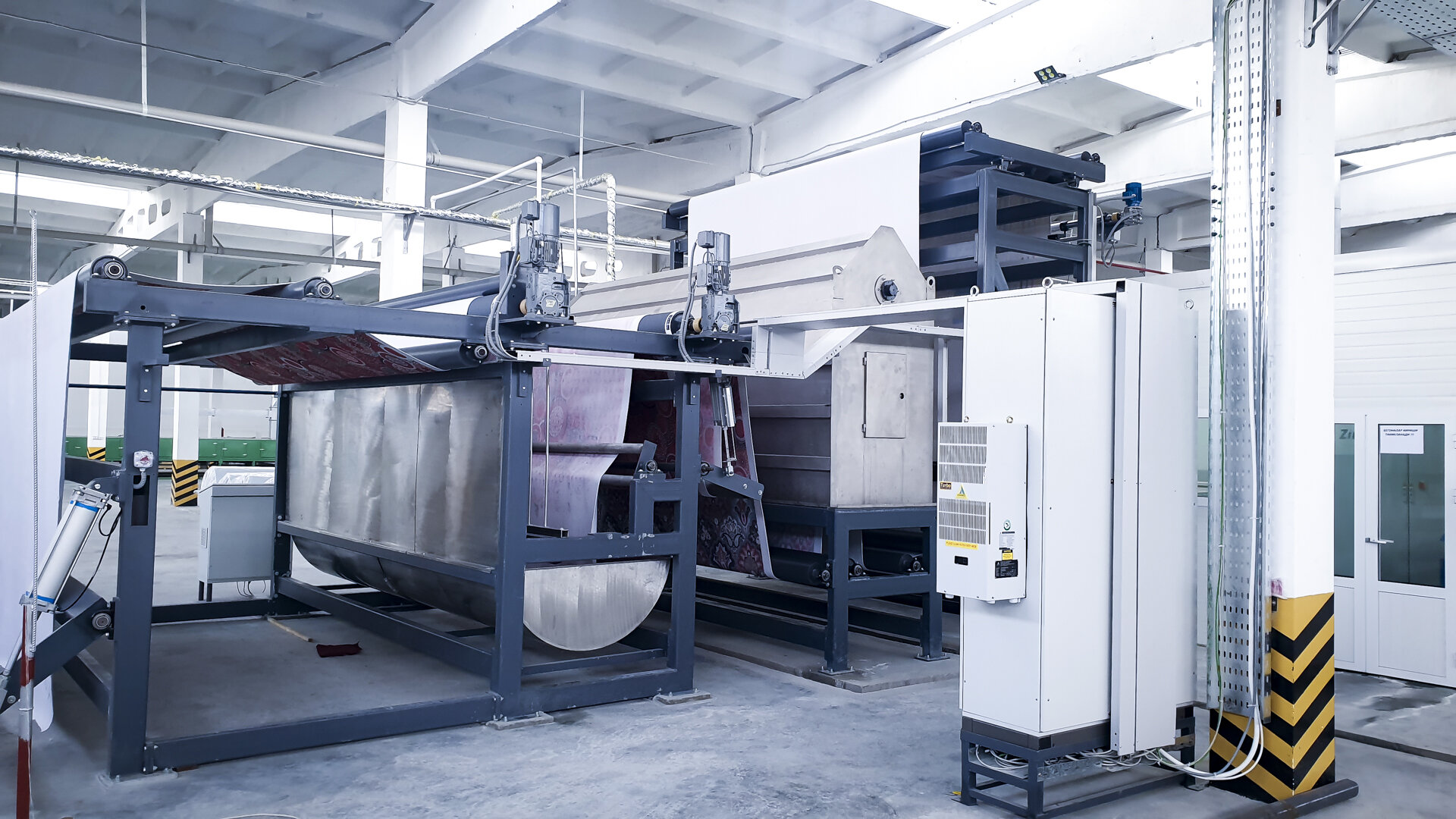

LINE COMPONENTS

Modular Line Components for Maximum Flexibility - Complement your COLARIS print line with optional modules tailored for efficient, high-quality printing and inline finishing of needle felt flooring solutions.

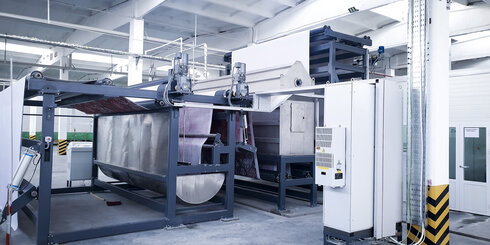

A-FRAME
UNWINDER

For maximum efficiency & minimal logistic effort

ROLLER
COMPENSATOR

Temporary fabric storage for uninterrupted printing production

PRE-TREATMENT
PADDER

Inline pre treatment for maximum energy efficiency

PRE-
STEAMER

Tension free fabric feed & moisture balance for better dye uptake

FABRIC GUIDING
SYSTEMS

Material guiding perfectly matching print substrate

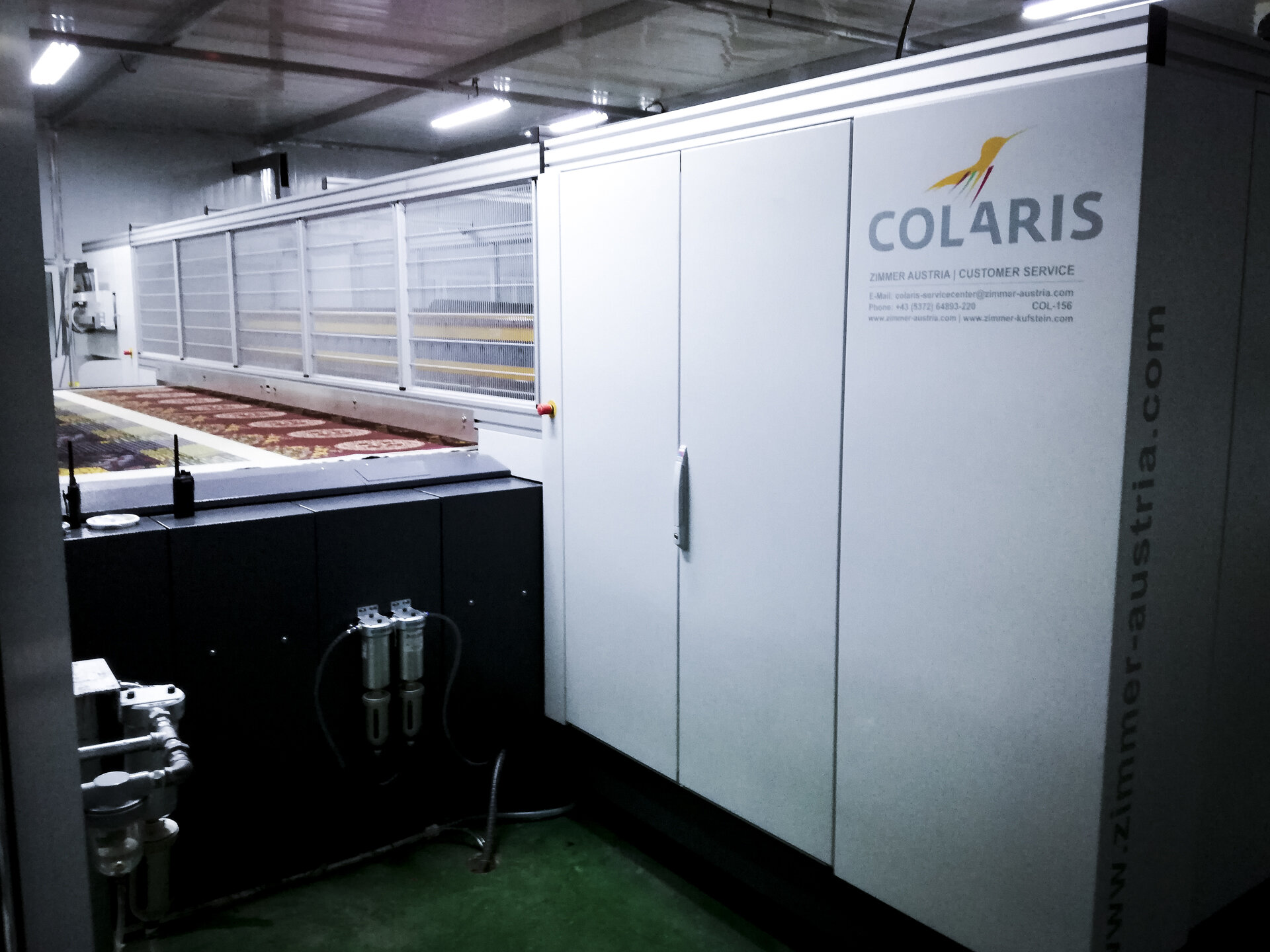

COLARIS
PRINTER

Maximum precision for versatile textile print applications

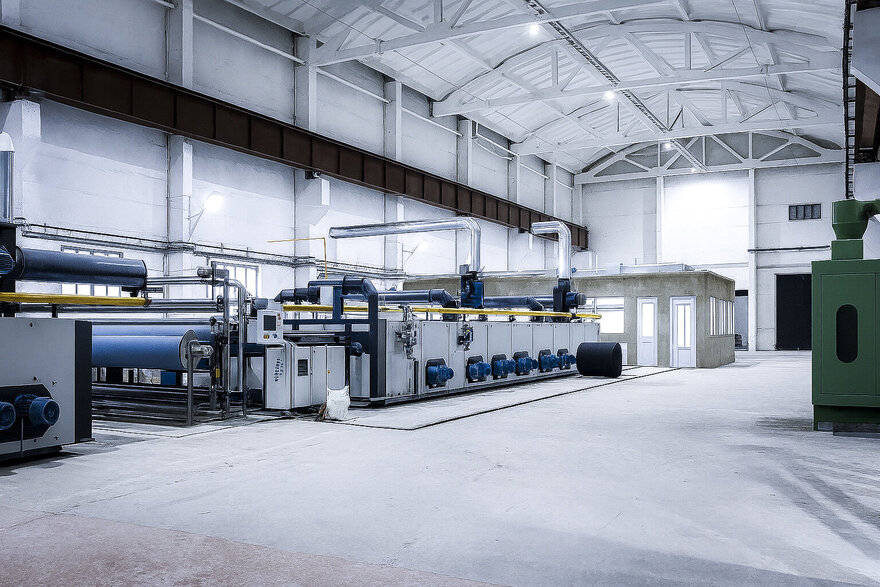

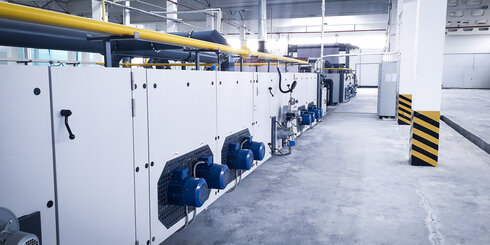

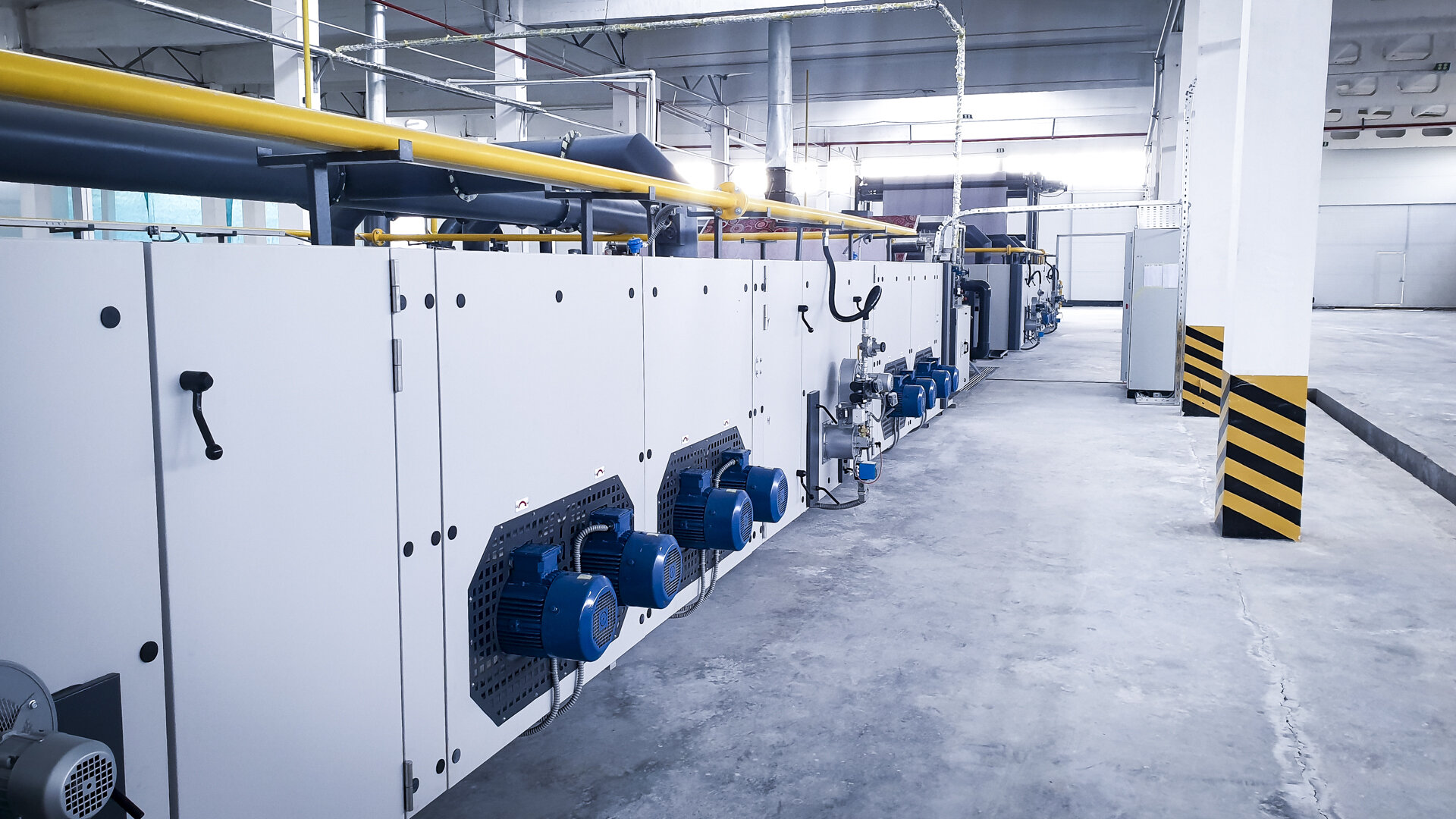

DRYING
SYSTEMS

Tailored to fabric quality & customer specified heating medium

INLINE
WASHER

Multi-stage post-print washer für maximum rub fastness

ASCENDING
ROLLER WINDER

For efficient carpet re-rolling
