COLARIS & CHROMOJET

PRINTER FOR SOFT CARPETS – PES Raschel

COLARIS & CHROMOJET digital printing systems deliver high-performance results on raschel carpet substrate. Its modular design allows seamless integration into existing or new processing lines. Brilliant colors, deep penetration, and top print quality for efficient, precise, and eco-friendly textile production. Premium print results with maximum flexibility.

Technical Data

Fabric types

Raschel fabrics

Available working widths

3.400, 4.200 & 5.200 mm

COLARIS | maximum number of colors

12

COLARIS | maximum number of print heads

96

COLARIS | native printing resolution

400 dpi

COLARIS | maximum print resolution

3.200 dpi at 2x6 colors and 4 passes
1.600 dpi at 12 colors and 4 passes

COLARIS | color setup options

single or double CMYK plus 2 extra colors or functional fluids up to 12 individual process colors or a combination of inks with functional fluids

COLARIS | production capacity

up to 1.200 m²/h at 2x6 colors and 1 pass printing
up to 600 m²/h at 12 colors and 2 pass printing

CHROMOJET | maximum number of colors

16

CHROMOJET | maximum number of jets

CHR400 1.280 per color
CHR800 1.024 per color

CHROMOJET | color options

CHR400 spot color printing only
CHR800 (76 dpi) spot color and/or process color printing

CHROMOJET | production capacity

up to 7 m/min, dependent on layout and number of jets per color

Drying system options

Hot air conveyor dryer, stenter frame or integration into an existing processing line

Heating sources

Natural gas, steam, thermal fluid

Operating temperature

150 – 200 °C

Fabric delivery options

Plaited or as existing

BRILLIANCE. EFFICIENCY. SUSTAINABILITY.

COLARIS prints raschel carpets in brilliant quality – modular, resource-efficient, and seamlessly integrable into existing production lines if needed.

RASCHEL
SOFT CARPETS

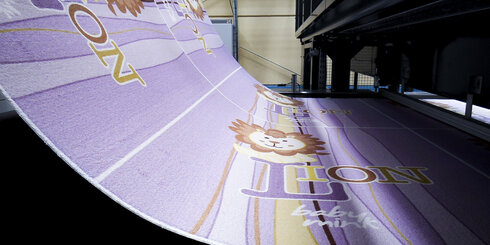

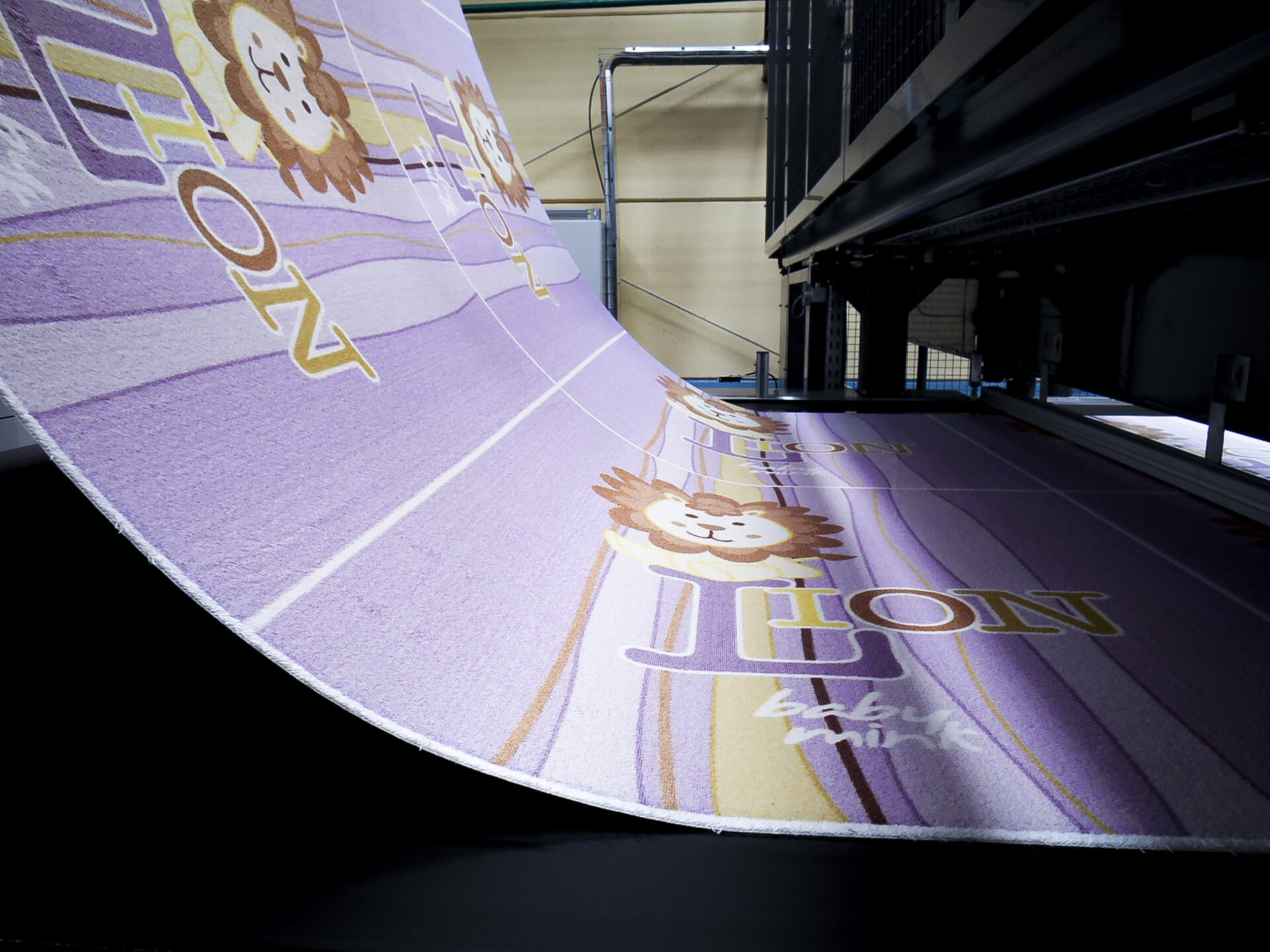

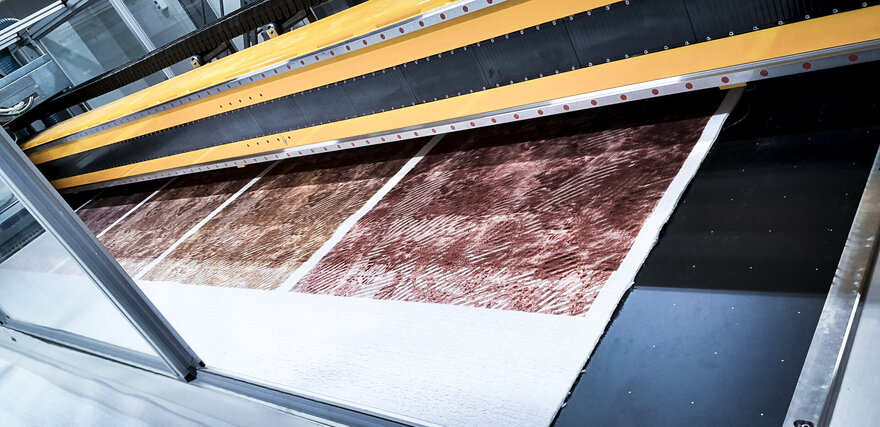

COLARIS prints raschel carpets with brilliant, long-lasting results. Precise designs turn your cozy area rugs into true highlights – vibrant and rich in detail.

SOFT CARPETS

The Smart Choice for Sustainable Soft Carpets

Discover how COLARIS delivers brilliant, deep-penetrated prints on raschel carpet substrates. Inline pre-treatment ensures top quality, faster processing, and eco-friendly results with a soft touch.

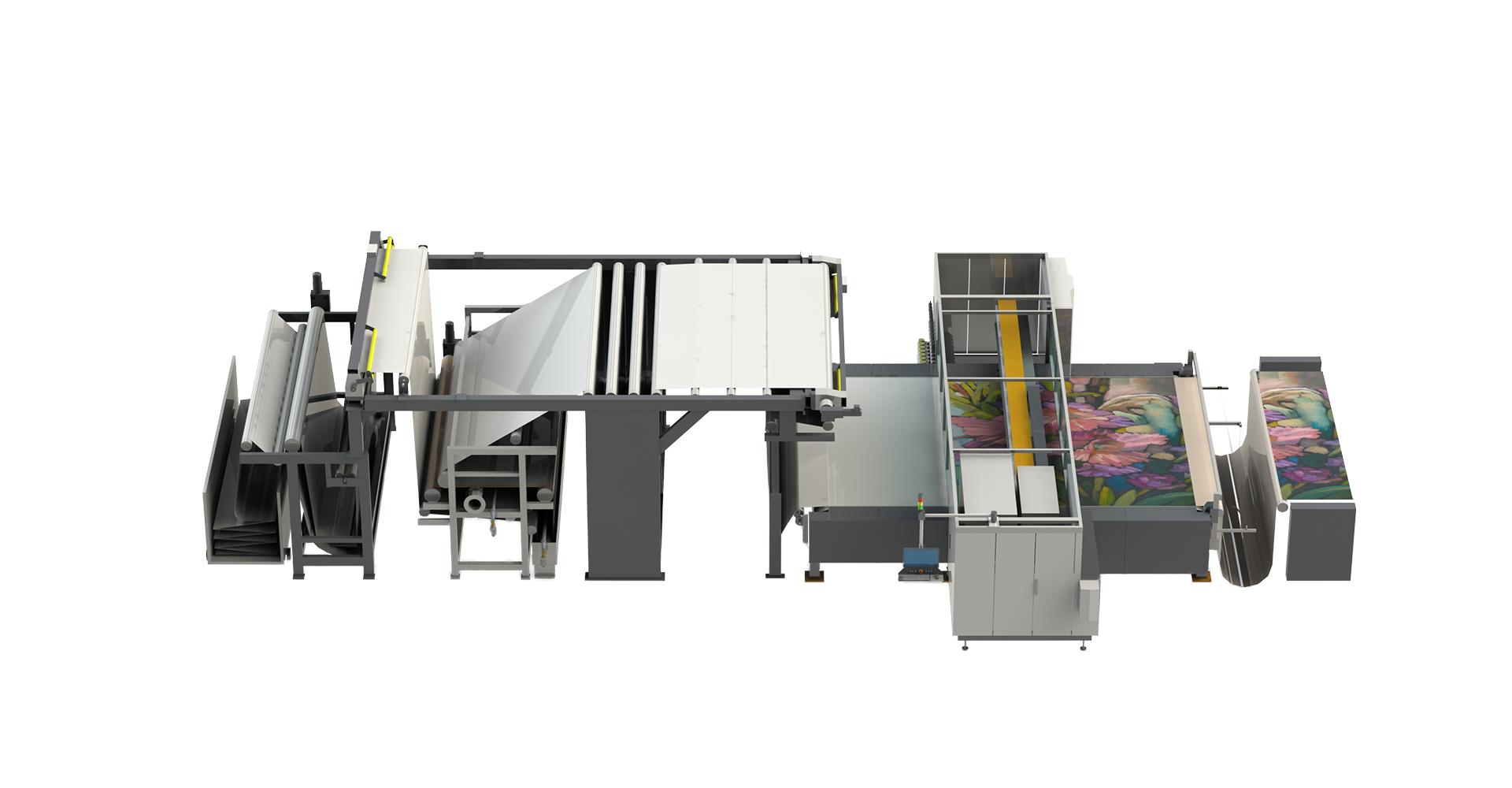

LINE COMPONENTS

Modular Line Components for Maximum Flexibility - Enhance your printing line with optional components designed for efficient, high-quality production across a wide range of products.

A-FRAME
UNWINDER

For maximum efficiency & minimal logistic effort

FABRIC CLEANING
SYSTEMS

gentle & precise to process requirements

PRE-
TREATMENT

Wetting agent application for optimal fabric pile penetration

ROLLER
COMPENSATOR

Temporary fabric storage for uninterrupted printing production

FABRIC GUIDING
SYSTEMS

Material guiding perfectly matching print substrate

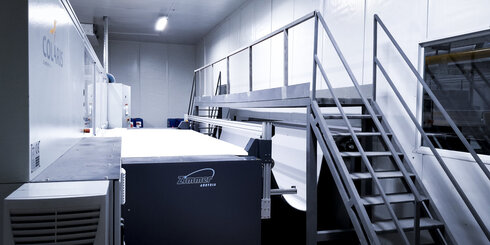

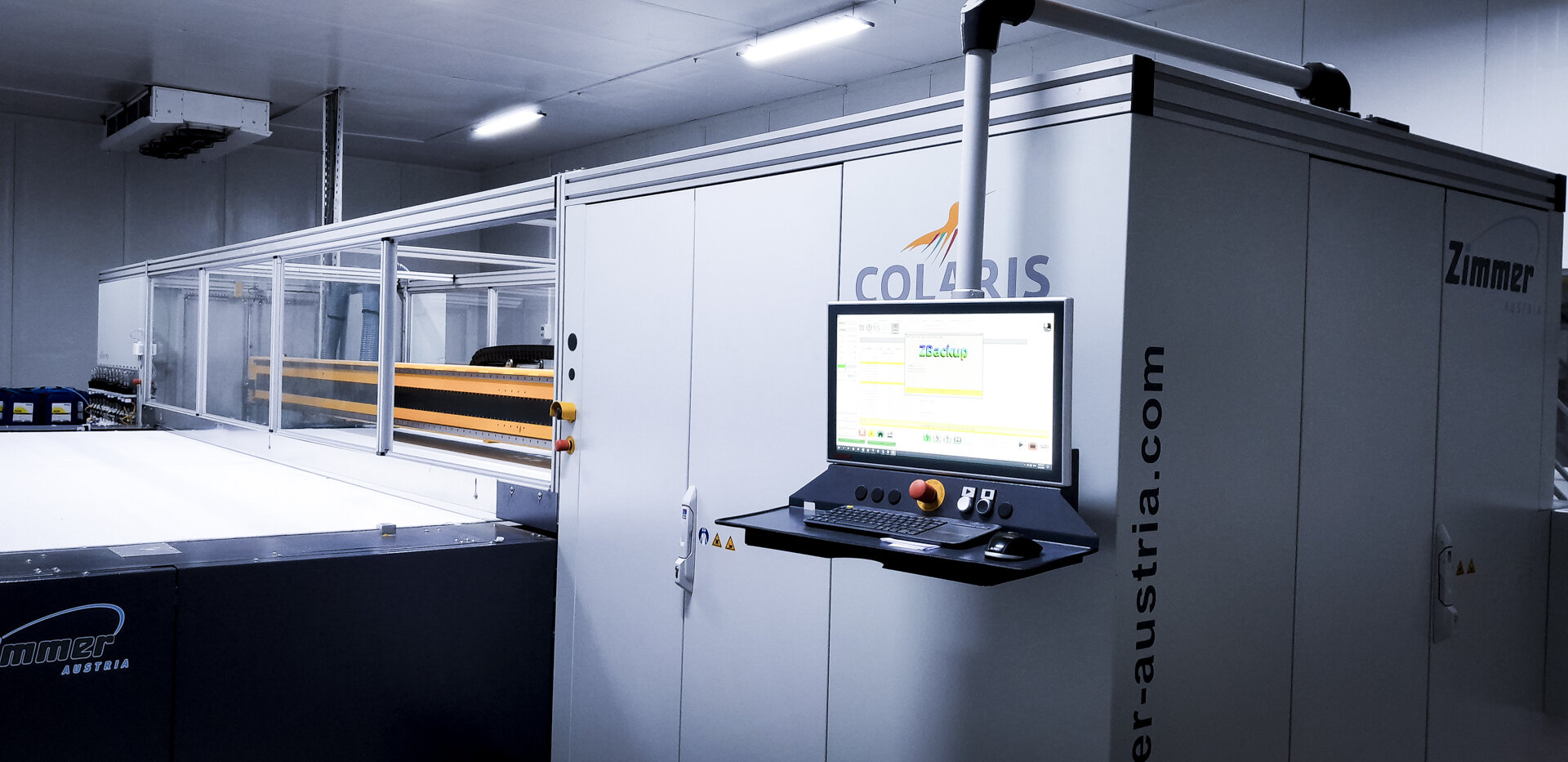

COLARIS
PRINTER

Maximum precision for versatile textile print applications

DRYING
SYSTEMS

Tailored to fabric quality & customer specified heating medium

INLINE
WASHER

Multi-stage post-print washer für maximum rub fastness

FABRIC
DEILVERY

Fabric output folded or rolled to customer specifications

Downloads

Click the document preview to open the online flip catalog.
Use the download button to get the print catalog as a PDF.
