COLARIS & CHROMOJET

PRINTER FOR TUFTED CARPETS – PA & WO

Maximum precision in carpet printing: COLARIS & CHROMOJET deliver high quality printing – ideal for contract and residential carpets, from broadloom to tiles. The system layout is customized to meet the highest demands of your end products and optimized for process efficiency. Resource-saving and sustainable – for ecologically and economically advanced production.

Technical Data

Fabric types

Tufted PA|WO loop or cut pile

Available working widths

2.200, 3.400, 4.200 & 5.200 mm

COLARIS | maximum number of colors

12

COLARIS | maximum number of print heads

96

COLARIS | native printing resolution

400 dpi

COLARIS | maximum print resolution

3.200 dpi at 2x6 colors and 4 passes
1.600 dpi at 12 colors and 4 passes

COLARIS | color setup options

single or double CMYK plus 2 extra colors or functional fluids up to 12 individual process colors or a combination of inks with functional fluids

COLARIS | production capacity

Up to 1.200 m²/h at 2x6 colors and 1 pass printing
Up to 600 m²/h at 12 colors and 2 pass printing

CHROMOJET | maximum number of colors

16

CHROMOJET | maximum number of jets

CHR400 1.280 per color
CHR800 1.024 per color

CHROMOJET | color options

CHR400 spot color printing only
CHR800 (76 dpi) spot color and/or process color printing

CHROMOJET | production capacity

up to 7 m/min, dependent on layout and number of jets per color

Dye Fixation System

Horizontal steamer, post print washing, hot air drying

Heating sources

Saturated steam, natural gas, thermal fluid or electric for the dryer

Operating temperature

steaming temperature 98 – 102 °C followed by drying temperature 90 – 180 °C

Fabric delivery options

Plaited, rolled on cardboard tubes or on A-frames

PRECISION. BRILLIANCE. EFFICIENCY

COLARIS printing systems for tufted carpets made of PA or wool – vibrant colors, deep penetration, eco-friendly and cost-effective.

Contract
Carpets

Durable, stylish, and built for high-traffic areas, commercial carpets combine performance and design to elevate any workspace.

Residential
Carpets

Plush comfort, stylish designs, and cozy warmth—perfect for low-traffic areas and enhancing home aesthetics.

Carpet
Rugs

Add warmth, style, and comfort to any room—easy to place, versatile in design, and perfect for enhancing home decoration.

Event
Carpets

Create a polished, professional look—perfect for red carpets, trade shows, and special occasions with easy setup and vibrant designs and color options.

Dust Control and Wash Mats

Trap dirt and moisture, keeping floors clean and safe—ideal for high-traffic entrances in homes or businesses.

TUFTED CARPETS from Polyamide & Wool fiber

BRILLIANT COLORS. LASTING QUALITY.

On carpets for high traffic areas. CHROMOJET delivers direct digital spot color printing and COLARIS offers high-resolution process color printing with inline pre-treatment. Both ensure deep dye penetration, and brilliant long-lasting results.

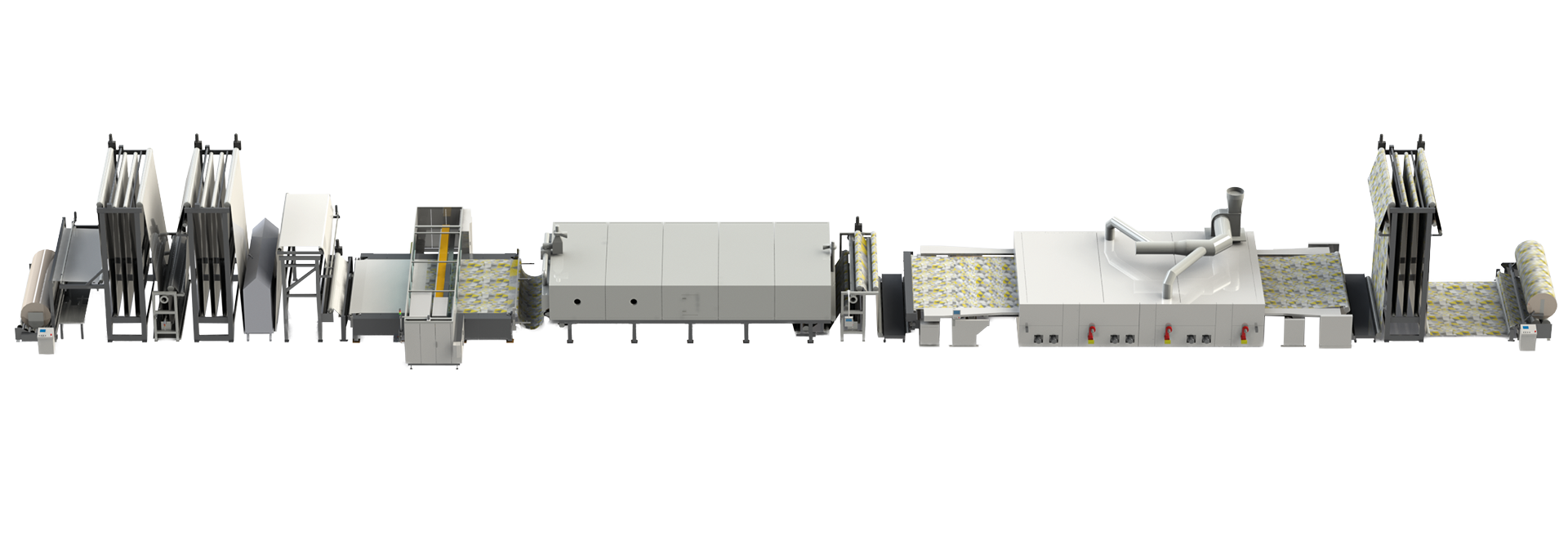

LINE COMPONENTS

Modular Line Components for Maximum Flexibility - Enhance your printing line with optional components designed for efficient, high-quality production across a wide different of PA & wool carpet products.

A-FRAME
UNWINDER

For maximum efficiency & minimal logistic effort

ROLLER CRADLE
UNWINDER

Reliable feeding of small rolls wrapped on cardboard tubes

CARPET
UNROLLING UNIT

Unwinder for small carpet rolls with pneumatic beam lift

FABRIC CLEANING
SYSTEMS

gentle & precise to process requirements

ROLLER
COMPENSATOR

Temporary fabric storage for uninterrupted printing production

PRE-
TREATMENT

Wetting agent application for optimal fabric pile penetration

PRE-
STEAMER

Tension free fabric feed & moisture balance for better dye uptake

FABRIC GUIDING
SYSTEMS

Material guiding perfectly matching print substrate

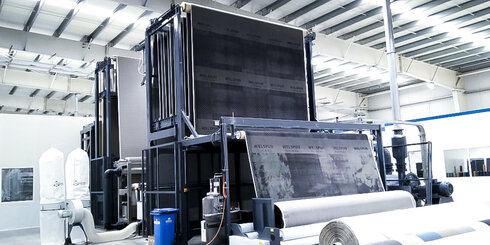

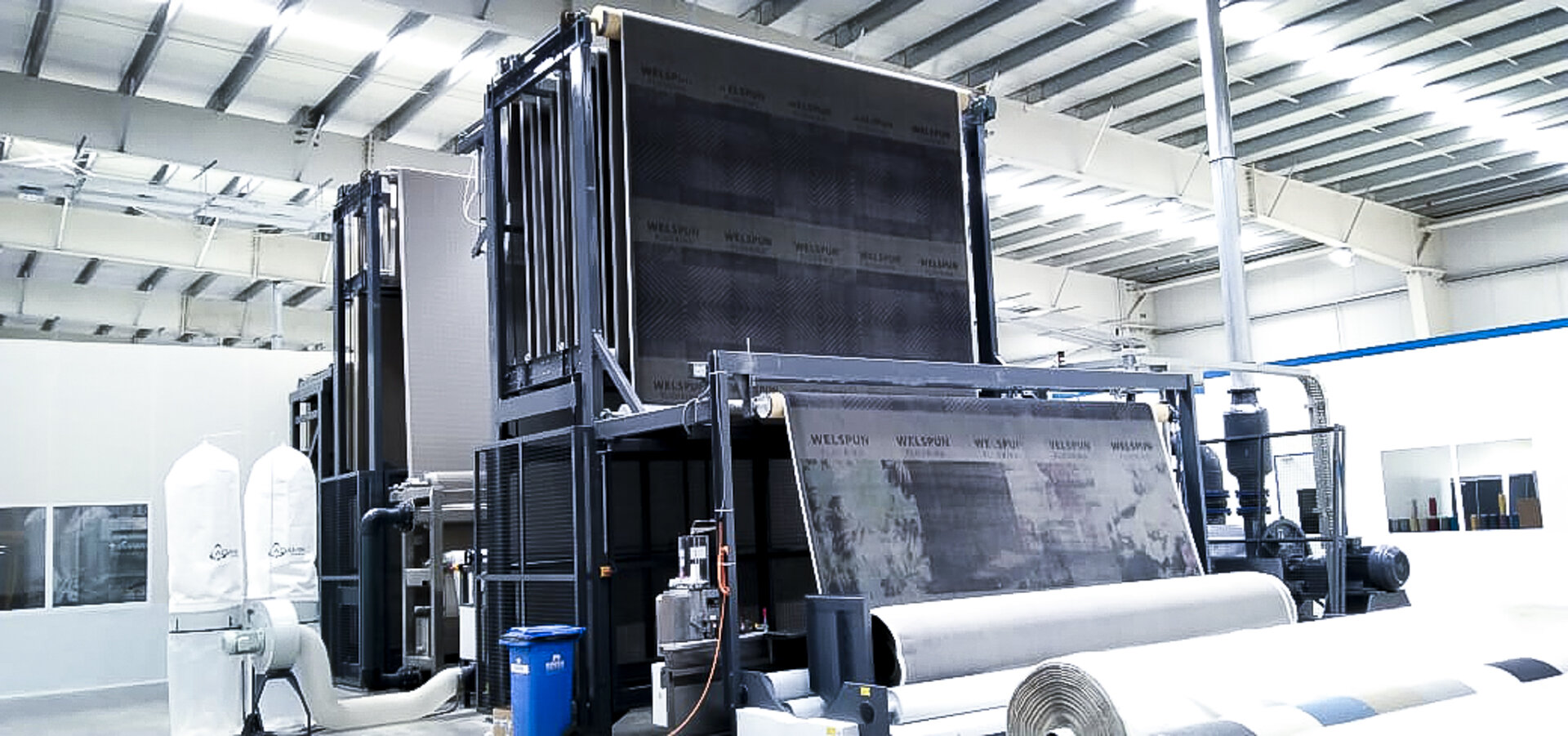

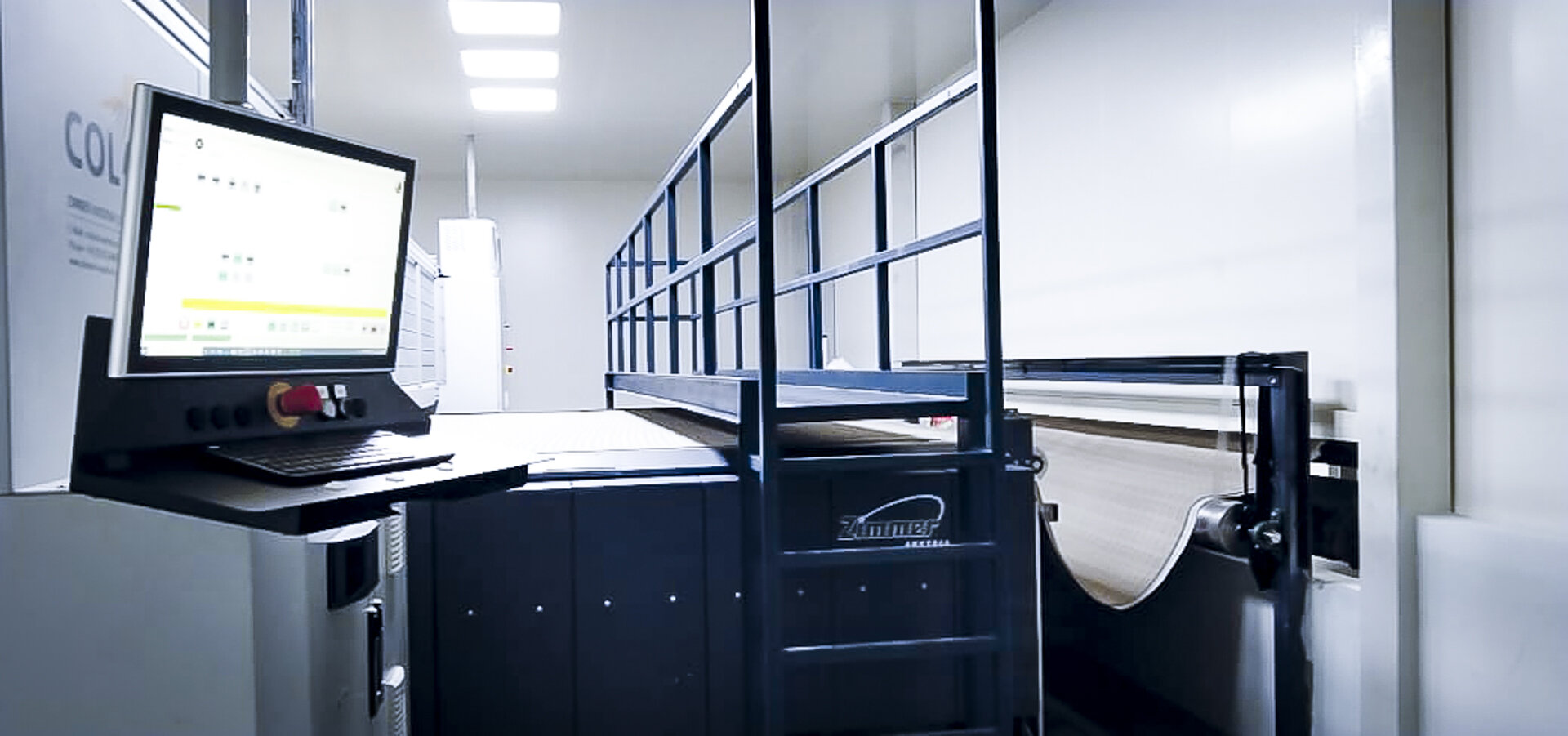

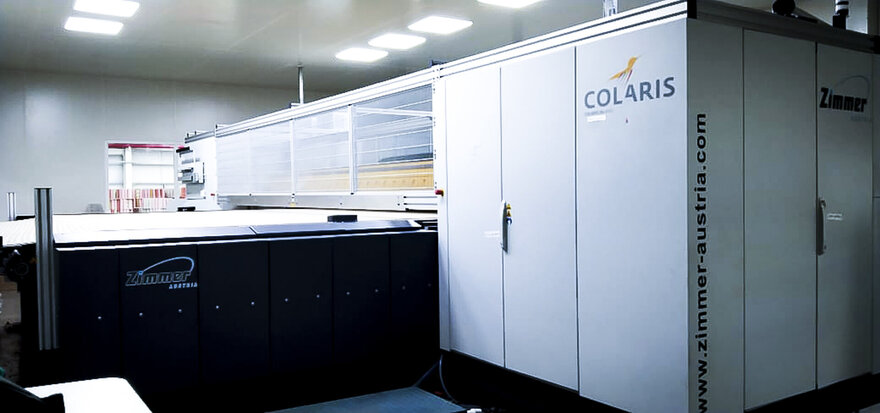

COLARIS
PRINTER

Maximum precision for versatile textile print applications

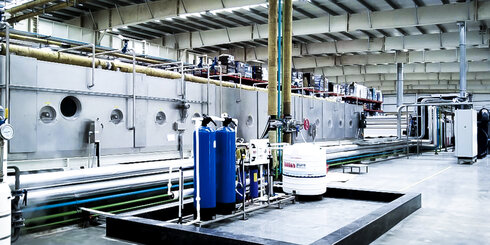

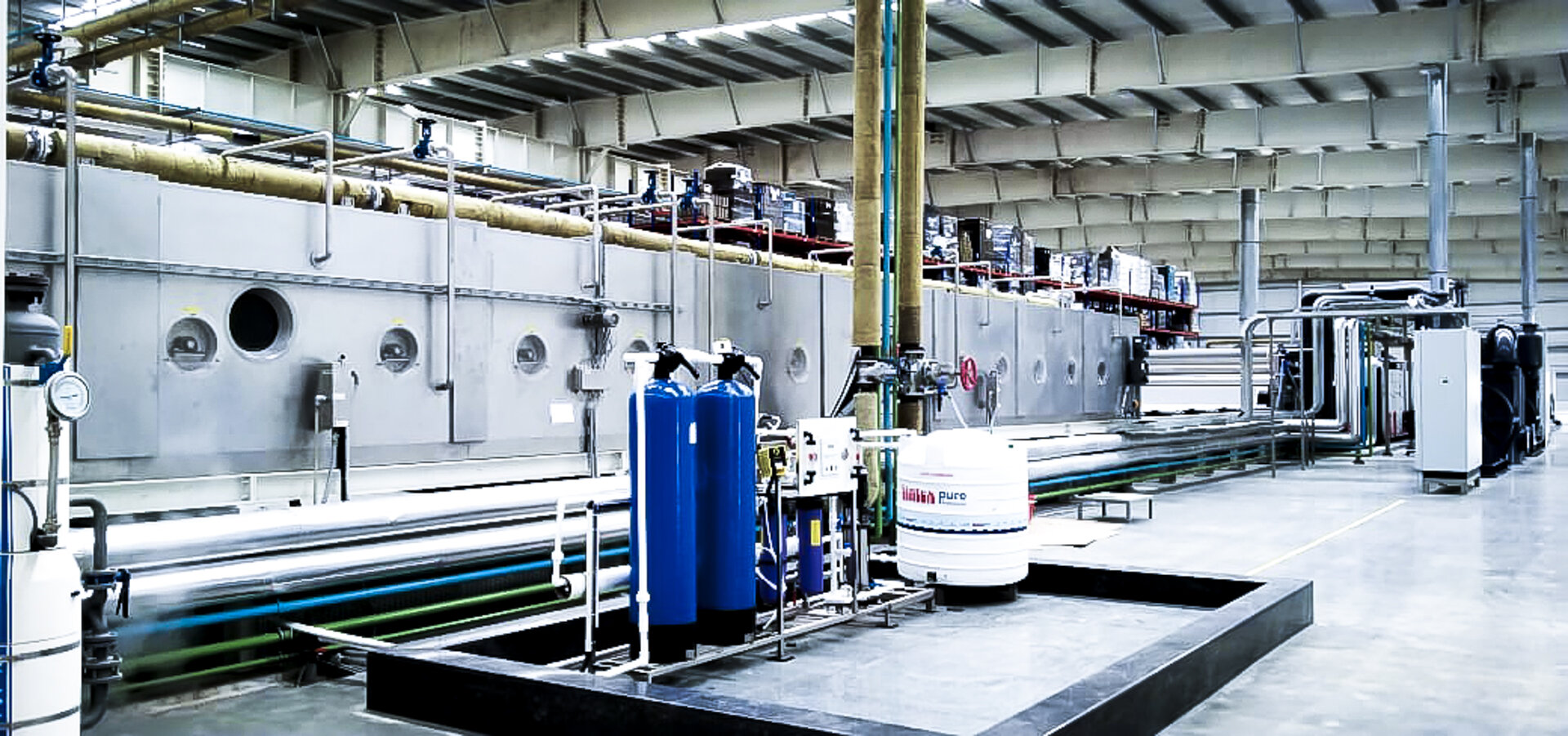

HORIZONTAL
STEAMER

Efficient dye fixation on PA & WO textile substrates

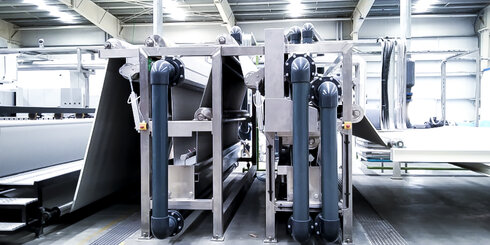

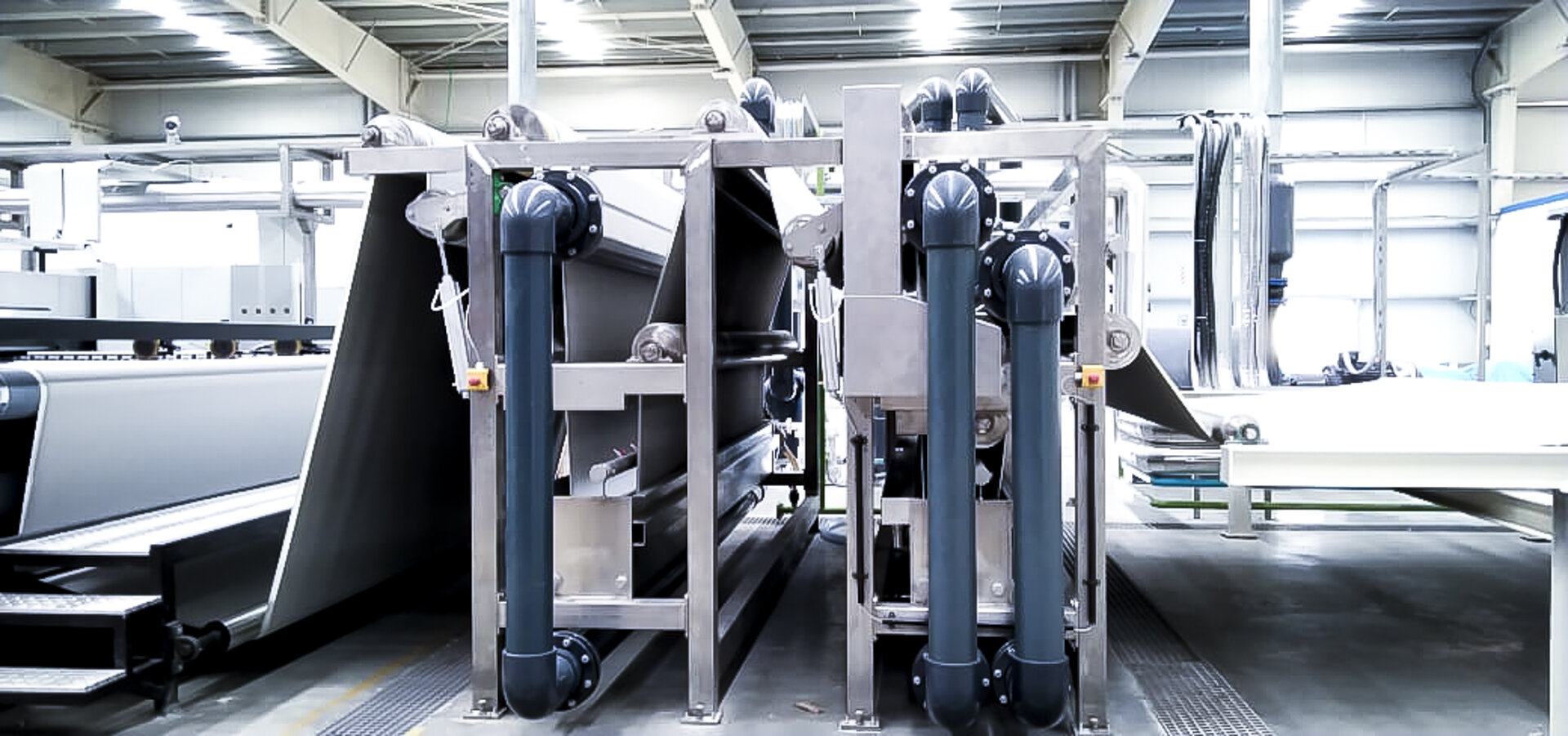

INLINE
WASHER

Multi-stage post-print washer für maximum rub fastness

DRYING
SYSTEMS

Tailored to fabric quality & customer specified heating medium

FABRIC
DEILVERY

Fabric output folded or rolled to customer specifications

ASCENDING
ROLLER WINDER

For efficient carpet re-rolling
