COLARIS & CHROMOJET

PRINTER FOR TUFTED CARPETS – PES

Even cost-effective PES carpets require top brilliance, sharpness, and deep penetration. COLARIS & CHROMOJET printing technologies by ZIMMER AUSTRIA meet these demands through an eco-friendly and economically optimized process. Whether for residential, contract, or mat applications – the systems are fully customizable, and ensure outstanding print quality.

Technical Data

Fabric types

Tufted PES loop or cut pile

Available working widths

2.200, 3.400, 4.200 & 5.200 mm

COLARIS | maximum number of colors

12

COLARIS | maximum number of printheads

96

COLARIS | native printing resolution

400 dpi

COLARIS | maximum print resolution

3.200 dpi at 2x6 colors and 4 passes
1.600 dpi at 12 colors and 4 passes

COLARIS | color setup options

single or double CMYK plus 2 extra colors or functional fluids up to 12 individual process colors or a combination of inks with functional fluids

COLARIS | production capacity

Up to 1.200 m²/h at 2x6 colors and 1 pass printing
Up to 600 m²/h at 12 colors and 2 pass printing

CHROMOJET | maximum number of colors

16

CHROMOJET | maximum number of jets

CHR400 1.280 per color
CHR800 1.024 per color

CHROMOJET | color options

CHR400 spot color printing only
CHR800 (76 dpi) spot color and/or process color printing

CHROMOJET | production capacity

up to 7 m/min, dependent on layout and number of jets per color

Dye Fixation

Hot air fixation, optional post print washing, hot air drying

Heating sources

Natural gas, thermal fluid or electric

Operating temperature

90 - 150 °C

Fabric delivery options

Plaited, rolled on cardboard tubes or on A-frames

BRILLIANCE. EFFICIENCY. VERSATILITY.

COLARIS prints PES carpets with brilliant results and cost-efficiency – perfect for residential, contract, and mat applications.

Contract
Carpets

Durable, stylish, and built for high-traffic areas, commercial carpets combine performance and de-sign to elevate any workspace.

Residential
Carpets

Plush comfort, stylish designs, and cozy warmth—perfect for low-traffic areas and enhancing home aesthetics.

Carpet
Rugs

Add warmth, style, and comfort to any room—easy to place, versatile in design, and perfect for enhancing home decoration.

Event
Carpets

Create a polished, professional look—perfect for red carpets, trade shows, and special occasions with easy setup and vibrant designs and color options.

Dust Control and Wash Mats

Trap dirt and moisture, keeping floors clean and safe—ideal for high-traffic entrances in homes or businesses.

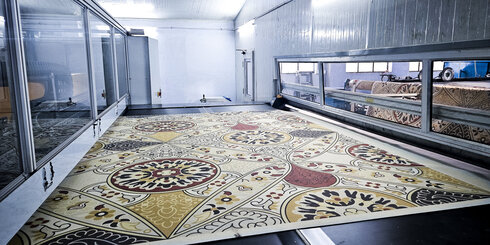

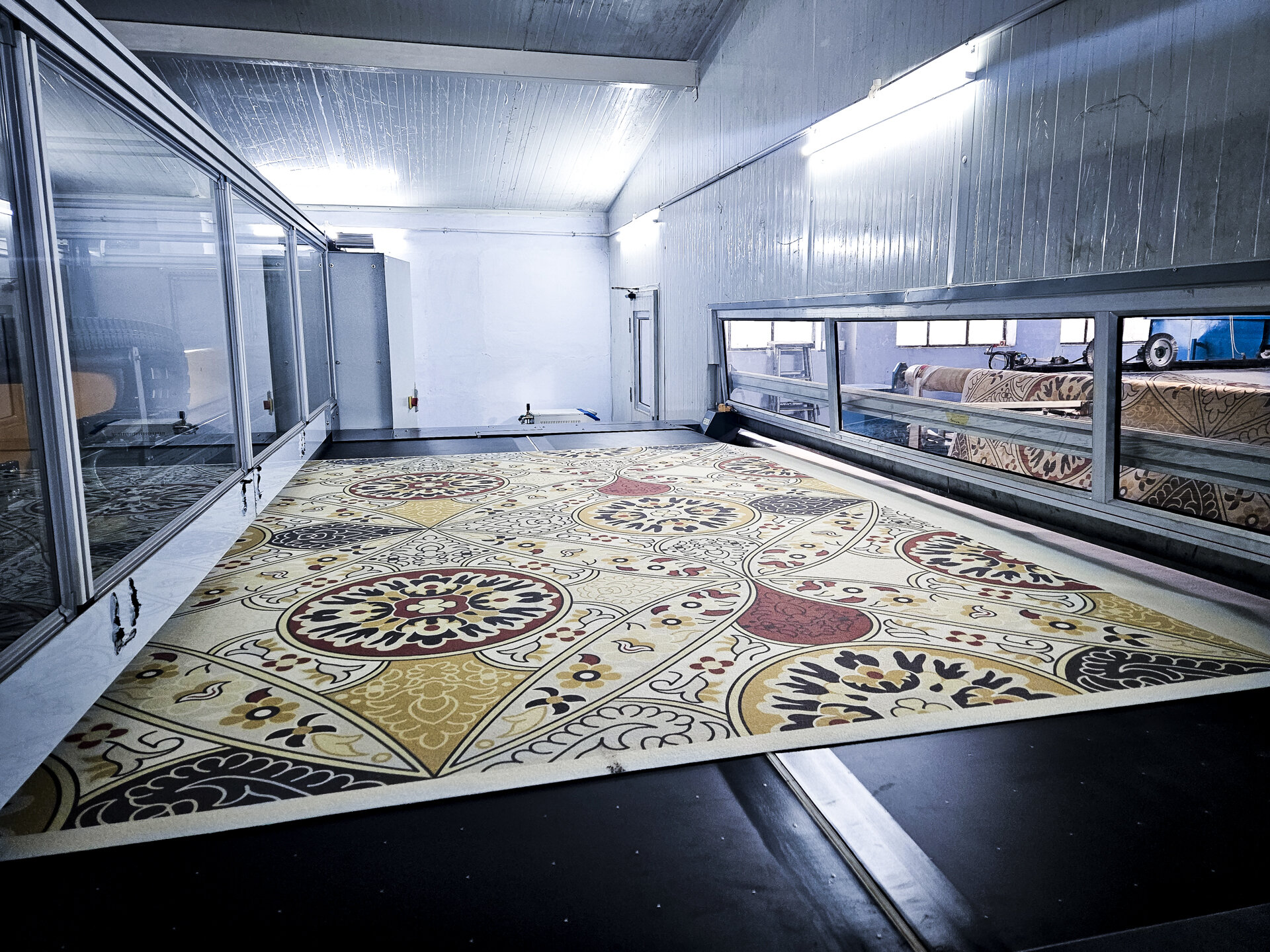

TUFTED CARPETS from Polyester fiber

VIVID DESIGNS. LASTING COMFORT.

COLARIS and CHROMOJET provide the perfect solution for economic printing on polyester tufted carpets, creating a lasting impression while bringing warmth and homelike comfort to residential interiors.

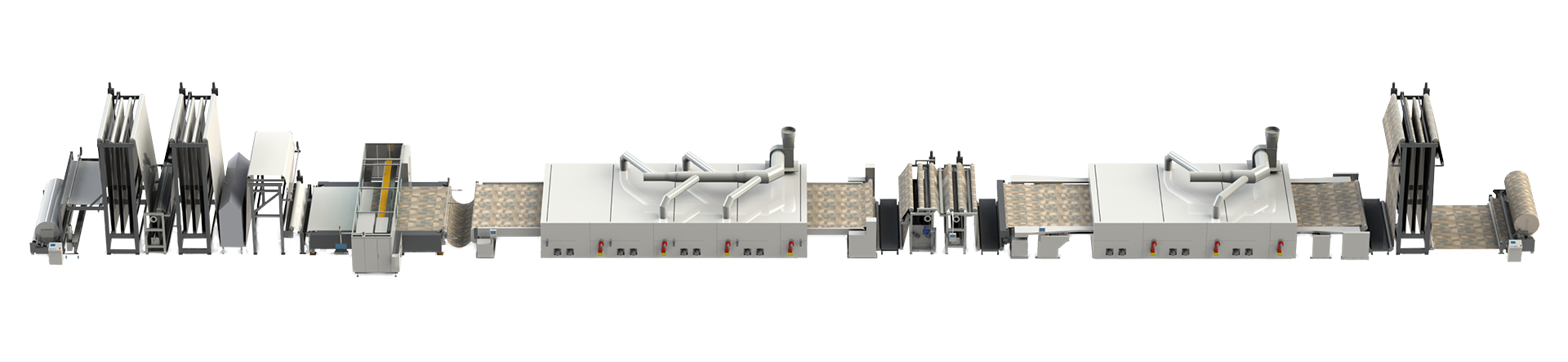

LINE COMPONENTS

Modular Line Components for Maximum Flexibility - Enhance your printing line with optional components designed for efficient, high-quality production across a wide range of products.

A-FRAME
UNWINDER

For maximum efficiency & minimal logistic effort

ROLLER
COMPENSATOR

Temporary fabric storage for uninterrupted printing production

PRE-TREATMENT
PADDER

Inline pre treatment for maximum energy efficiency

PRE-
STEAMER

Tension free fabric feed & moisture balance for better dye uptake

FABRIC GUIDING
SYSTEMS

Material guiding perfectly matching print substrate

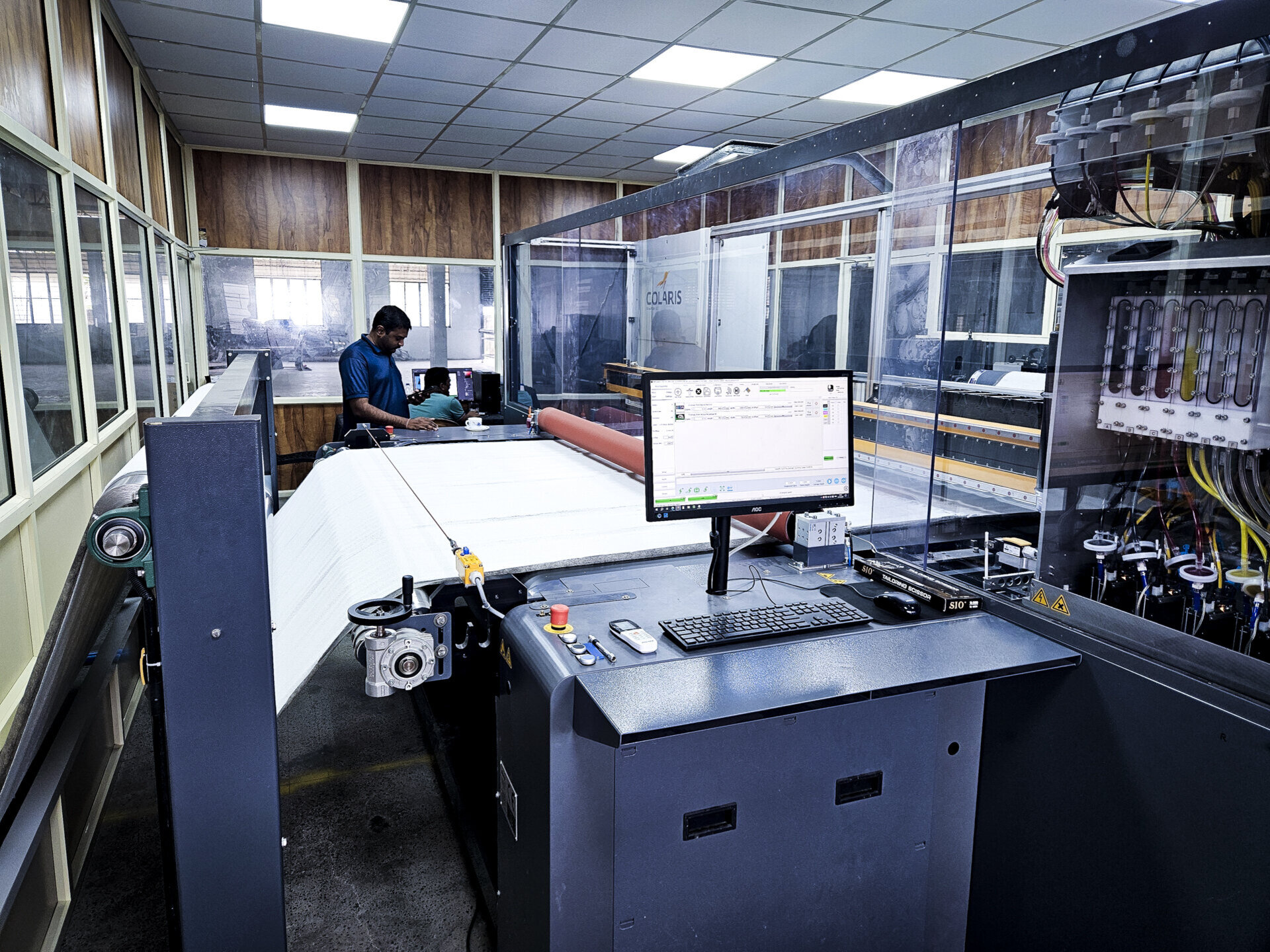

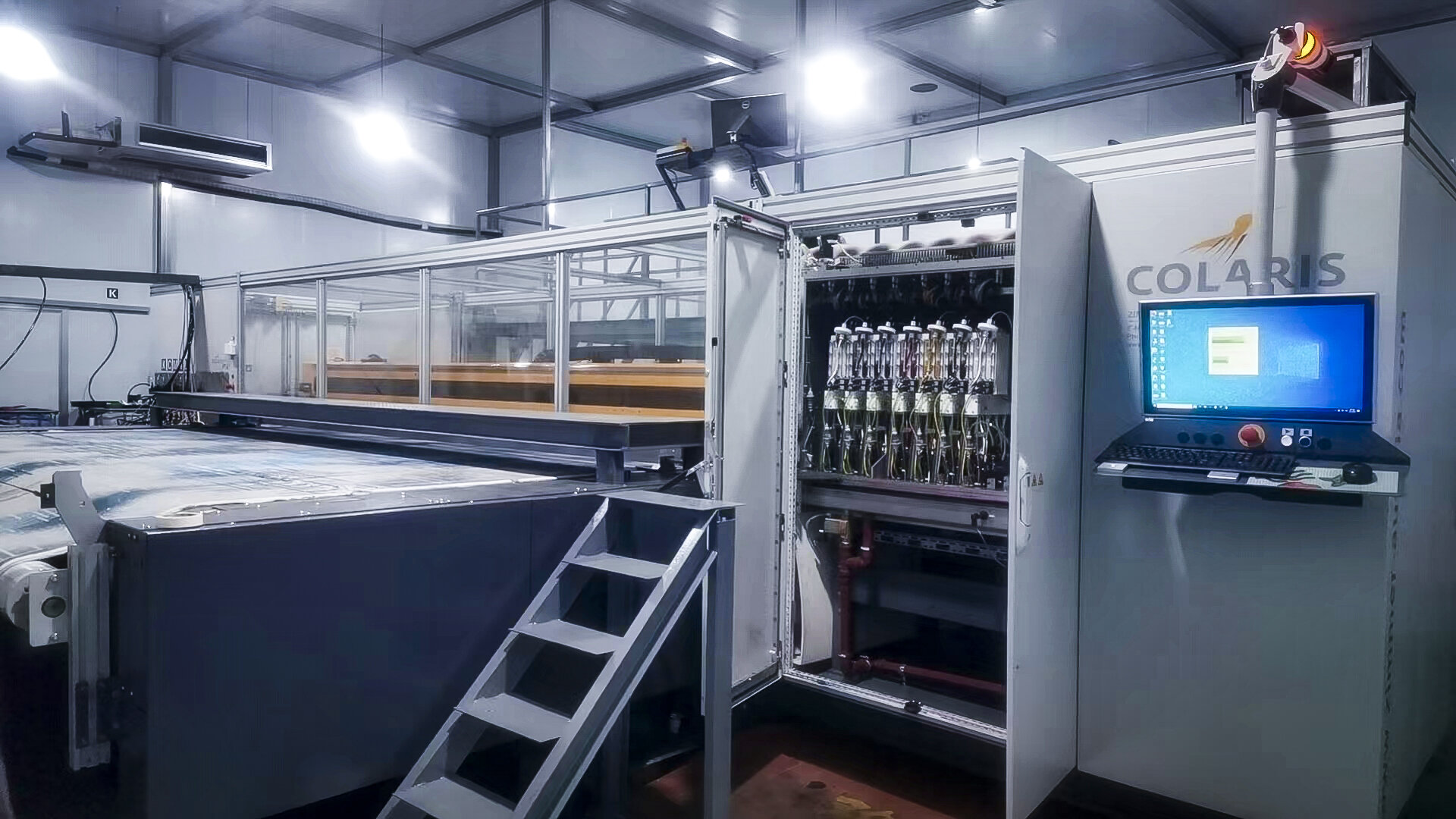

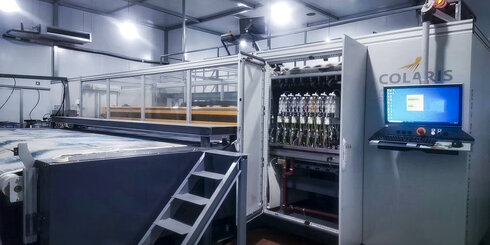

COLARIS
PRINTER

Maximum precision for versatile textile print applications

DRYING
SYSTEMS

Tailored to fabric quality & customer specified heating medium

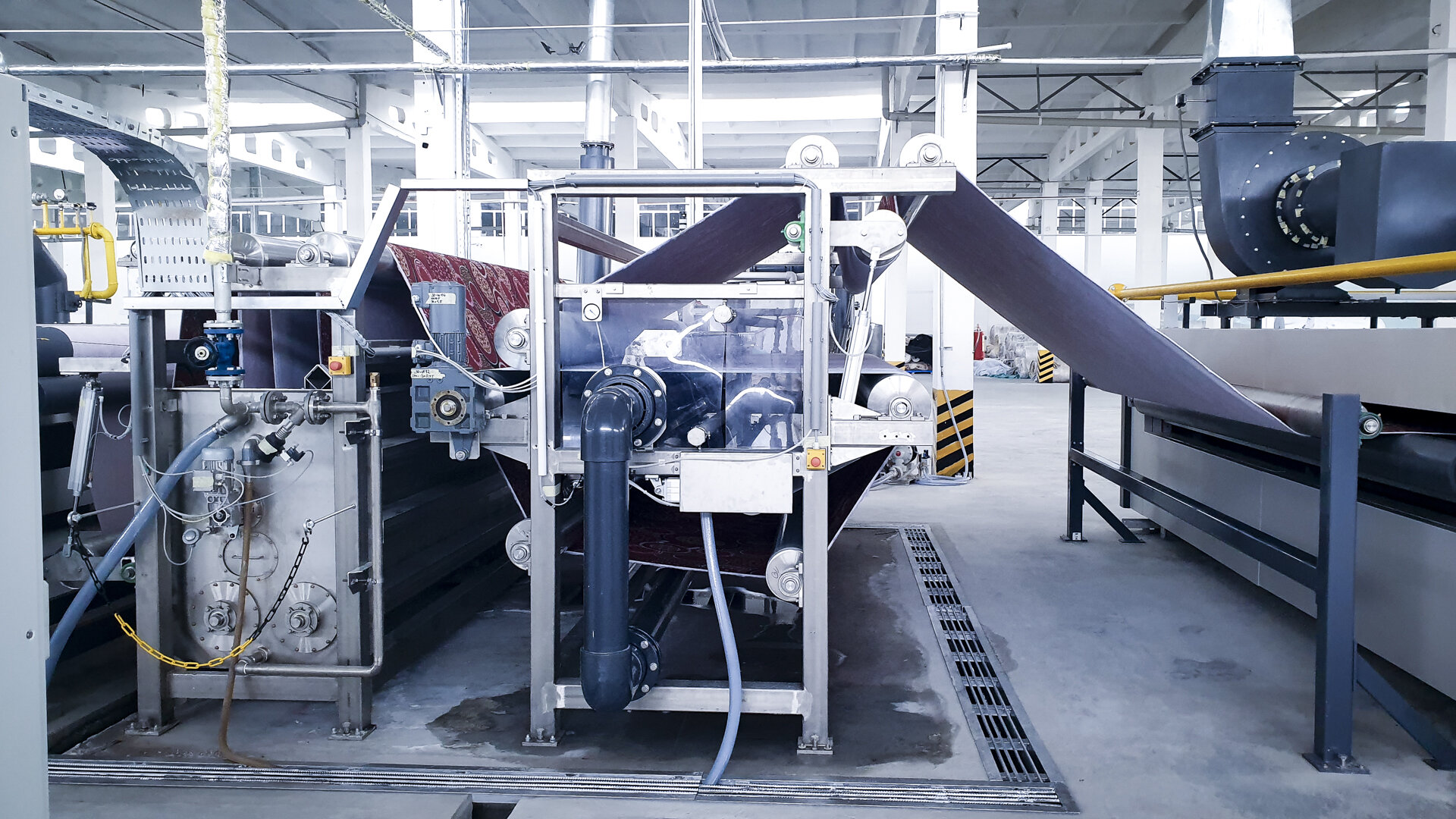

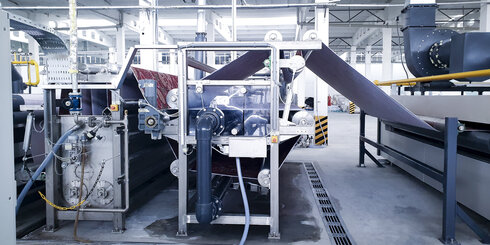

INLINE
WASHER

Multi-stage post-print washer für maximum rub fastness

ASCENDING
ROLLER WINDER

For efficient carpet re-rolling
