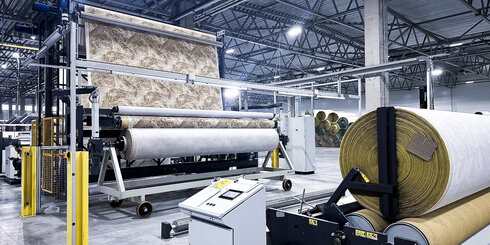

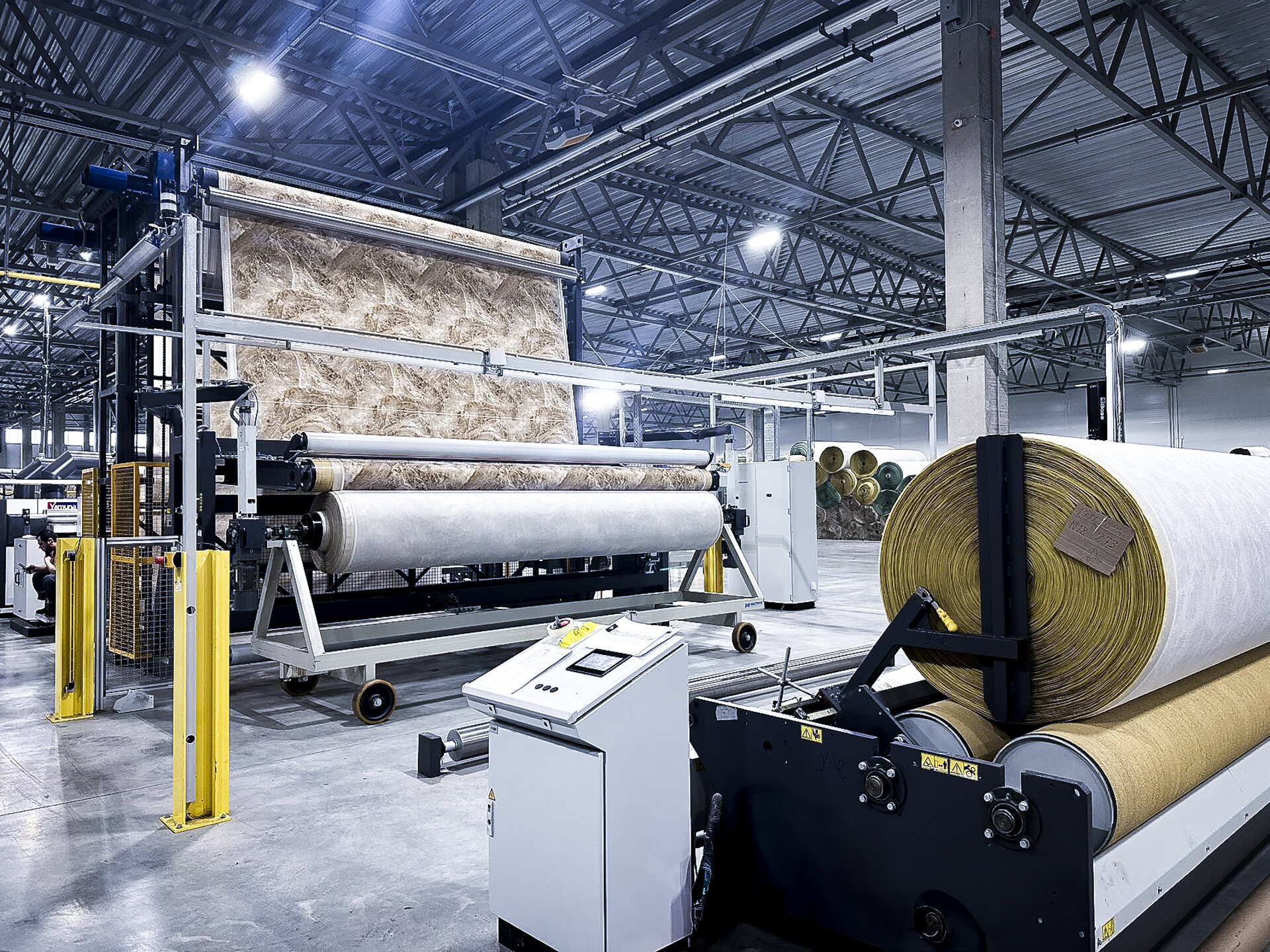

COLARIS

PRINTER FOR WOVEN PILE CARPETS – PES

Heavy woven carpets printed with COLARIS digital technology offer premium quality for stylish interiors. Full pile and backing penetration ensure brilliant results. Optional double-sided one-pass printing enables realistic imitation of hand-woven rugs – a cost-effective yet high-value alternative. Ideal for carpets made of PES or PAN. Quality and price in perfect harmony.

Technical Data

Fabric types

Woven PES or PAN carpets

Available working widths

3.400, 4.200, & 5.200 mm

Maximum number of colors

12

Maximum number of printheads possible

96

Native printing resolution

400 dpi

Maximum print resolution

3.200 dpi at 2x6 colors and 4 passes
1.600 dpi at 12 colors and 4 passes

Production capacity COLARIS

Up to 600 m²/h at 2x6 colors and 2 pass printing
Up to 300 m²/h at 12 colors and 4 pass printing

Color setup options

single or double CMYK plus 2 extra colors or functional fluids up to 12 individual process colors or a combination of inks with functional fluids

Dye Fixation System

Steam or hot air fixation, post print washing, hot air drying

Heating sources

Saturated steam, Natural gas, or thermal fluid

Operating temperature

150 – 200 °C

Fabric delivery options

rolled on cardboard tubes or on A-frames

DEPTH. PRECISION. AUTHENTICITY.

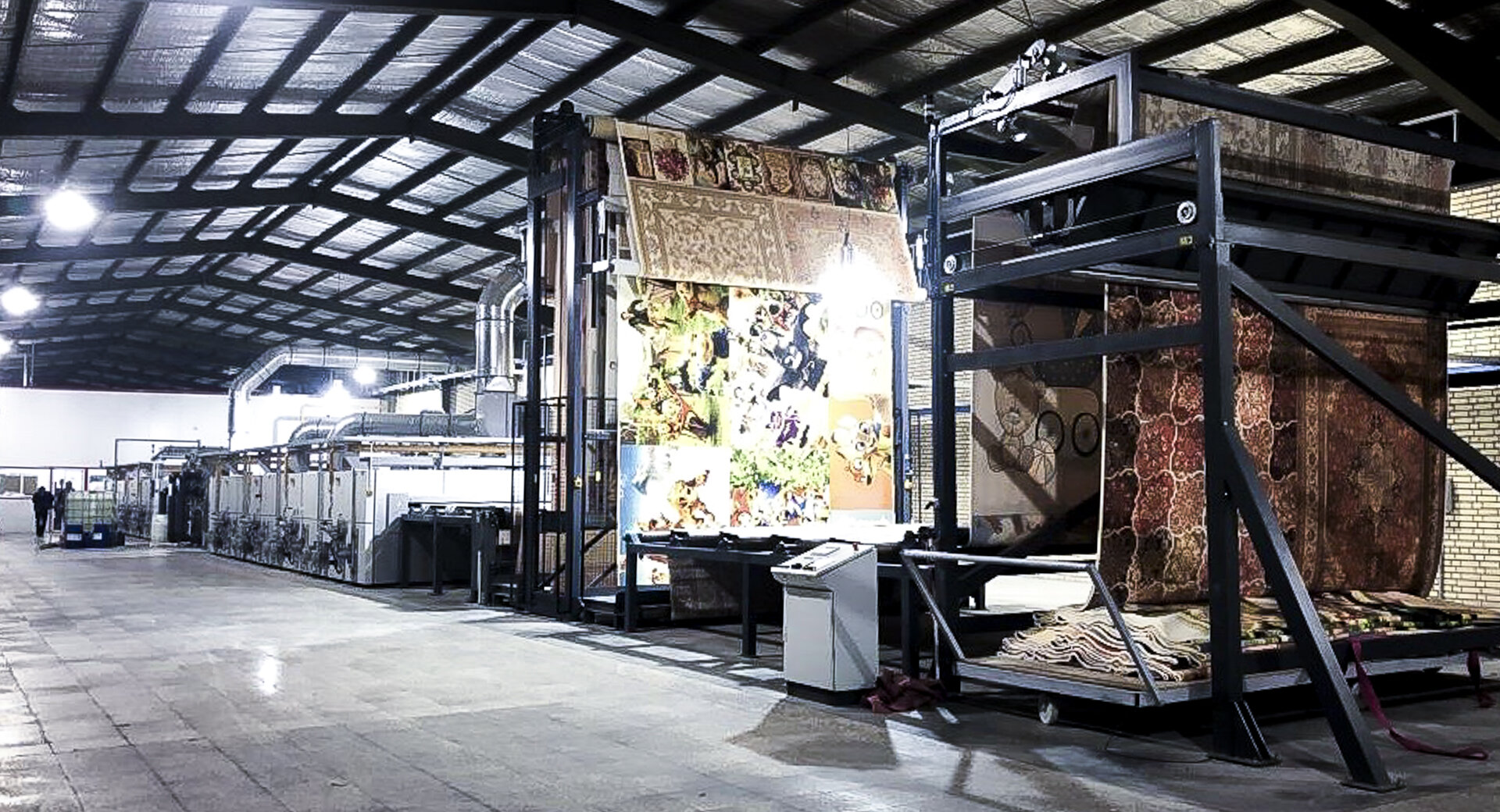

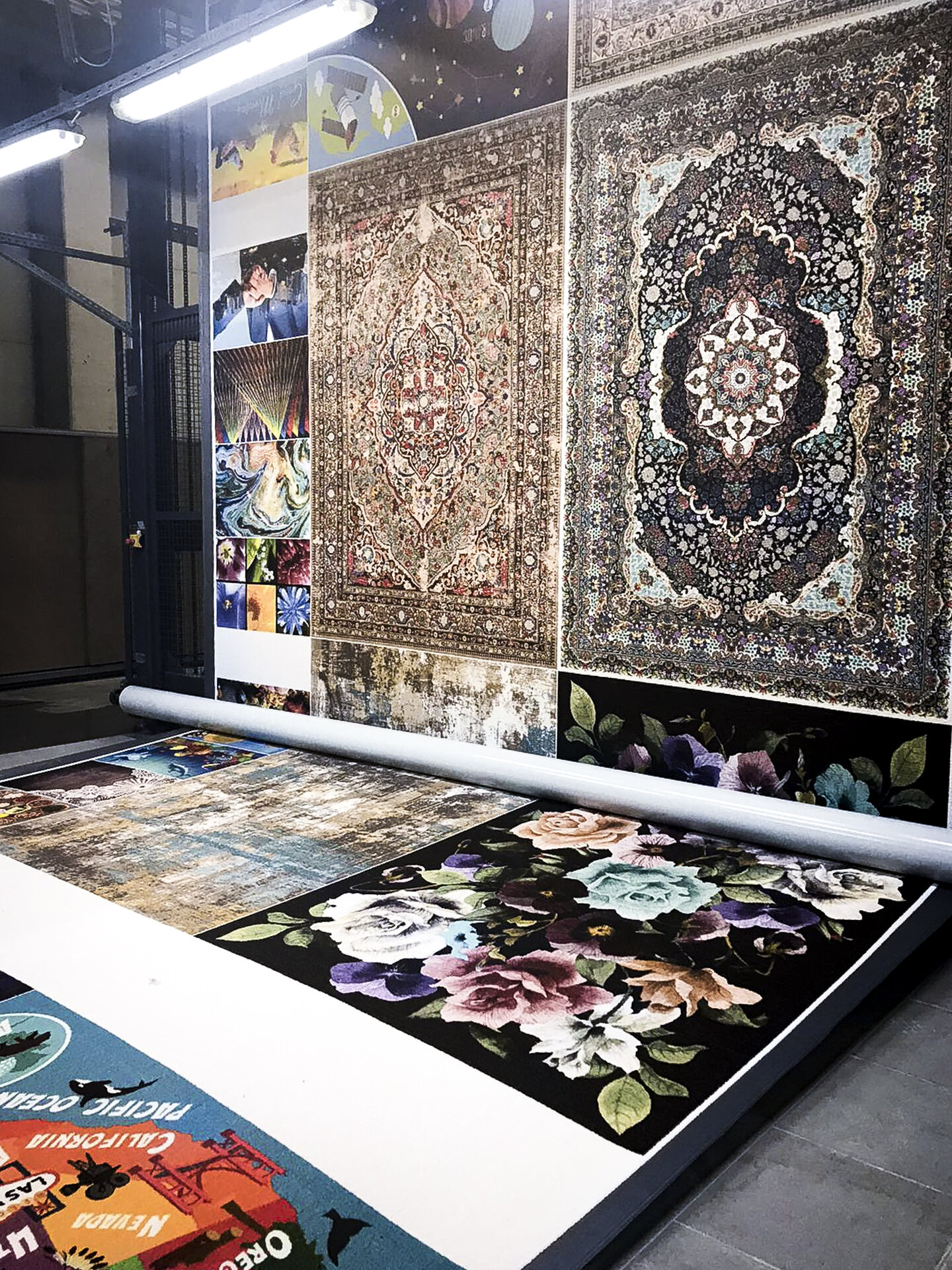

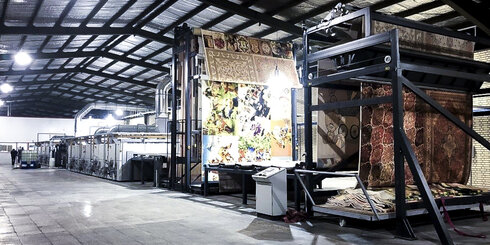

COLARIS prints heavy woven carpets double-sided with full penetration – perfect for imitating hand-woven rug designs.

Residential
Carpets

Plush comfort, stylish designs, and cozy warmth—perfect for low-traffic areas and enhancing home aesthetics.

Carpet
Rugs

Add warmth, style, and comfort to any room—easy to place, versatile in design, and perfect for enhancing home decoration.

COLARIS

FOR WOVEN PILE CARPETS

COLARIS is the smart solution for sustainable, high-quality woven carpets. Optional one-pass double-sided printing with deep penetration – ideal for PES and PAN carpets with brilliant design.

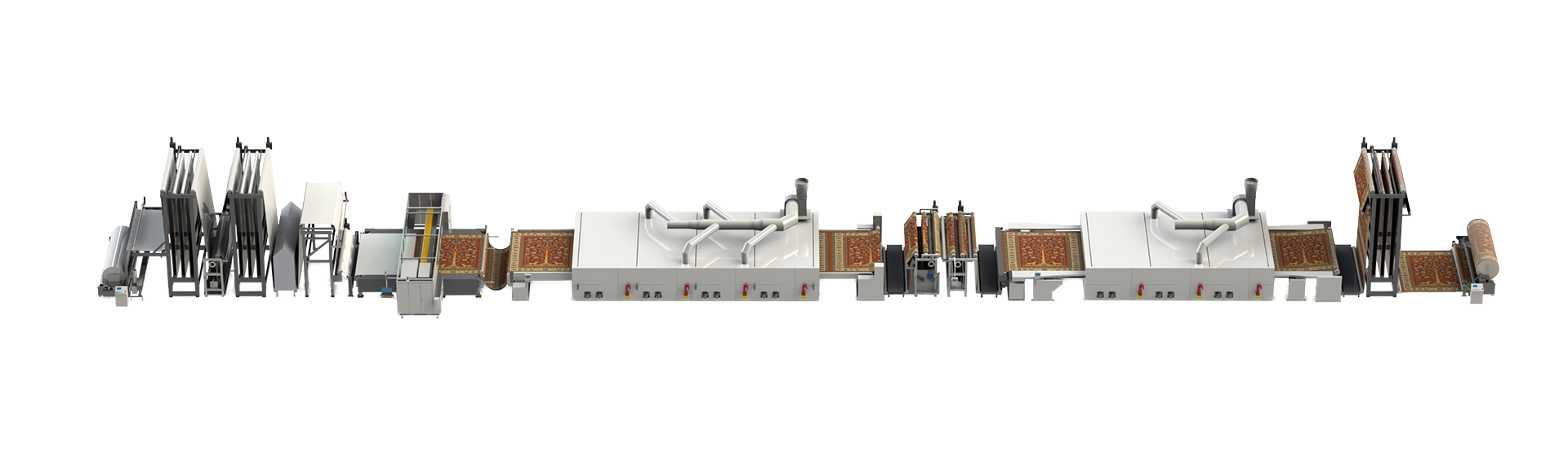

LINE COMPONENTS

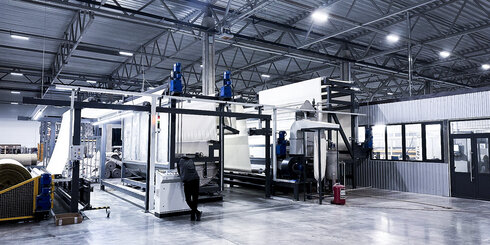

Modular Line Components for Maximum Flexibility - Enhance your printing line with optional components designed for efficient, high-quality production of woven pile carpets made from PES or PAN.

A-FRAME
UNWINDER

For maximum efficiency & minimal logistic effort

ROLLER
COMPENSATOR

Temporary fabric storage for uninterrupted printing production

PRE-TREATMENT
PADDER

Inline pre treatment for maximum energy efficiency

PRE-
STEAMER

Tension free fabric feed & moisture balance for better dye uptake

FABRIC GUIDING
SYSTEMS

Material guiding perfectly matching print substrate

COLARIS
PRINTER

Maximum precision for versatile textile print applications

DRYING
SYSTEMS

Tailored to fabric quality & customer specified heating medium

INLINE
WASHER

Multi-stage post-print washer für maximum rub fastness

ASCENDING
ROLLER WINDER

For efficient carpet re-rolling
