Compact & Easy Handling

ROTASCREEN RSDM V

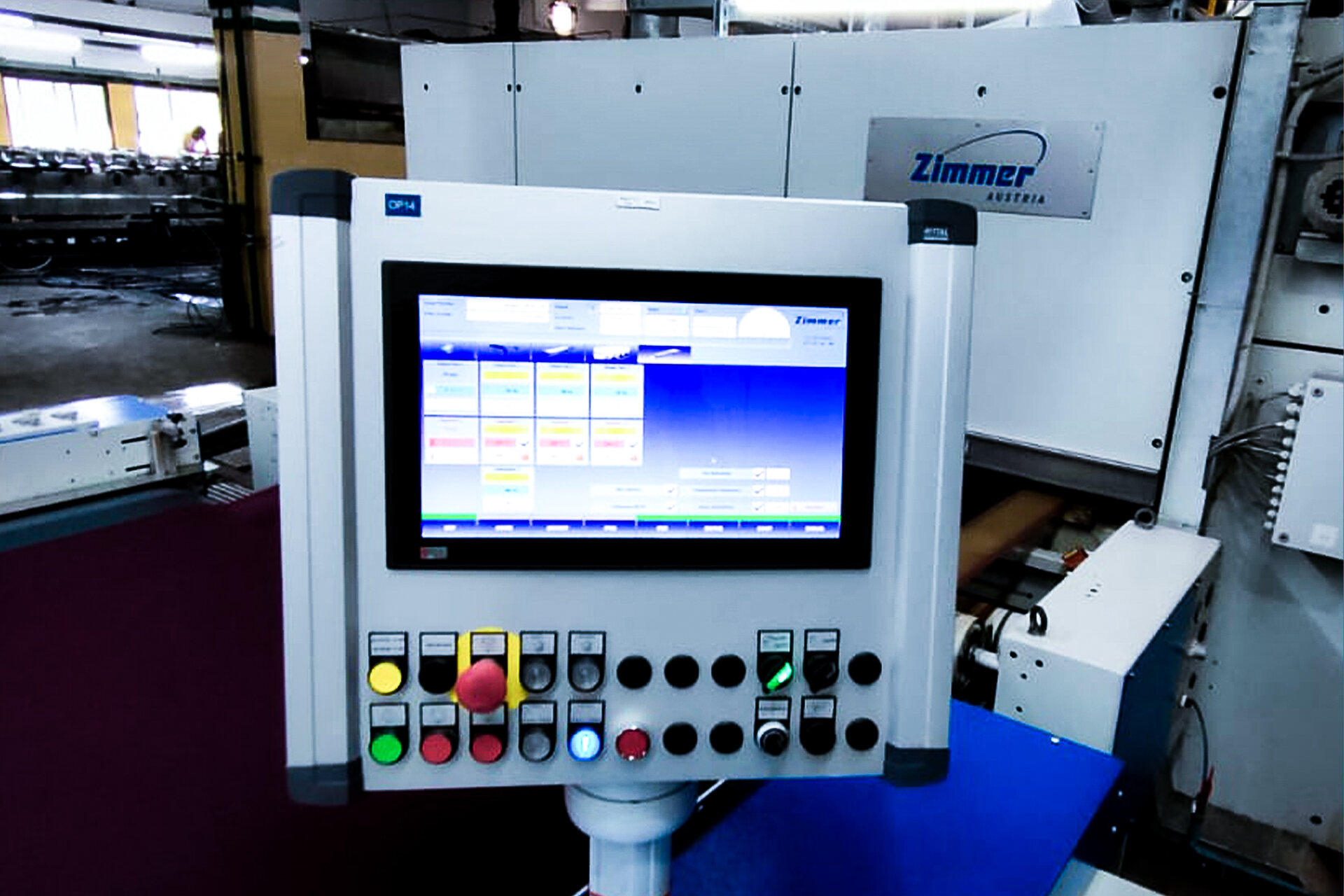

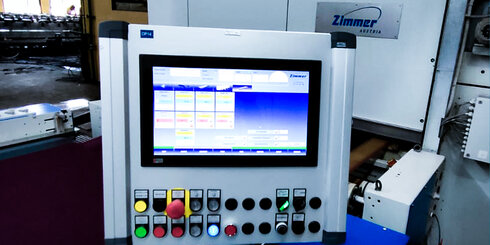

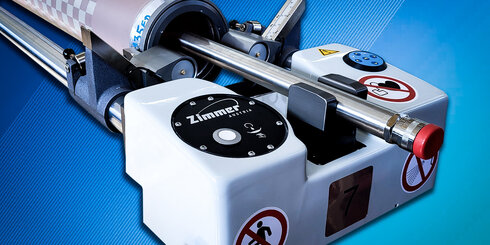

The V-Type print head with open bearing system, pneumatic color pipe holder, and digital panel enables quick, safe screen and color changes. A solid single-steel support ensures clear fabric visibility, while the original ZIMMER MAGNET SYSTEM PLUS guarantees uniform, high-quality color application.

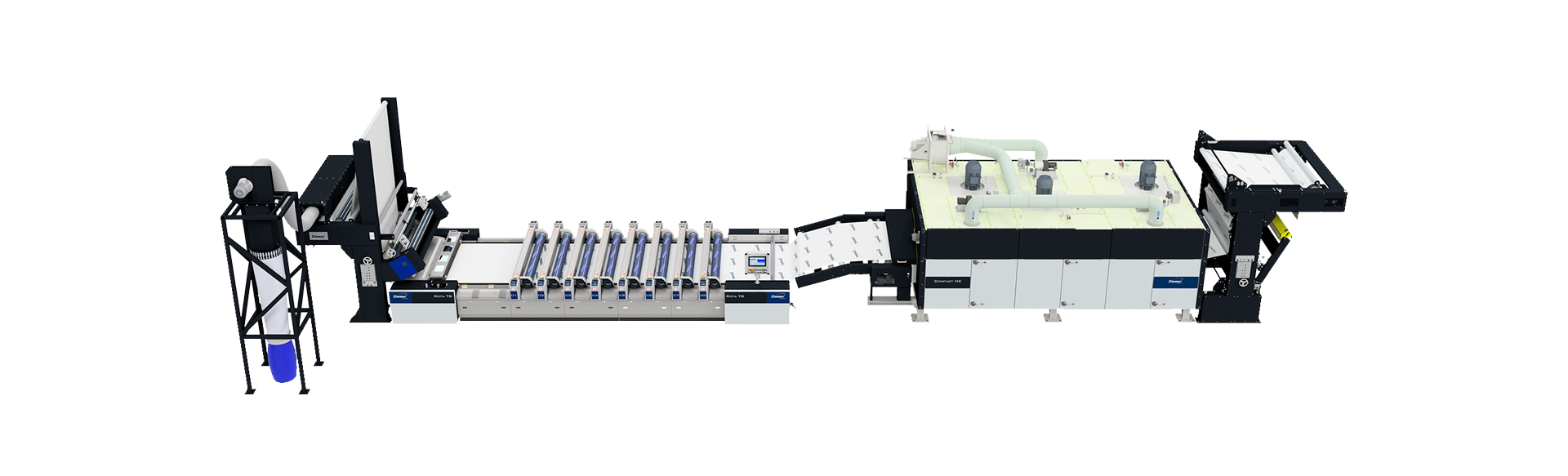

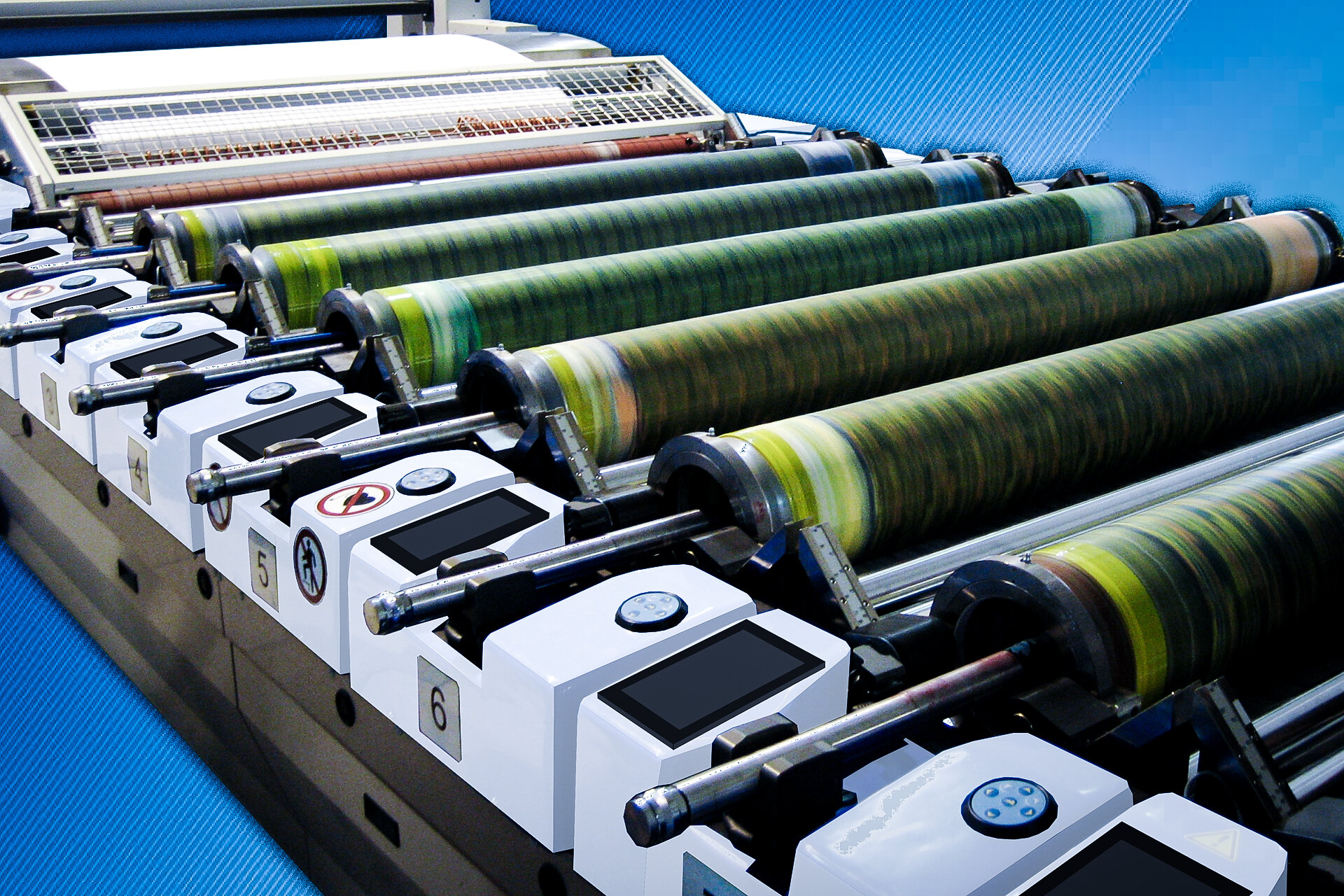

Compact production line rotascreen RSDM V - Screen Printing

The compact reliable easy handling high production.

Magnet System Plus
Open Bearing System V

Compact and durable rotary screen printing machine with a single high-quality steel support ensures a clear view of the fabric between each printing station. Repeat size can be adjusted from 64 to 120 cm. Printing widths are available from 165 to 330 cm, with up to 24 stations. The V-Type print head with open bearing system allows fast screen handling and easy setup, including quick color pipe changes during design adjustments.

    • Digital synchronization ensures high printing accuracy up to 120 m/min, with one servomotor per station.

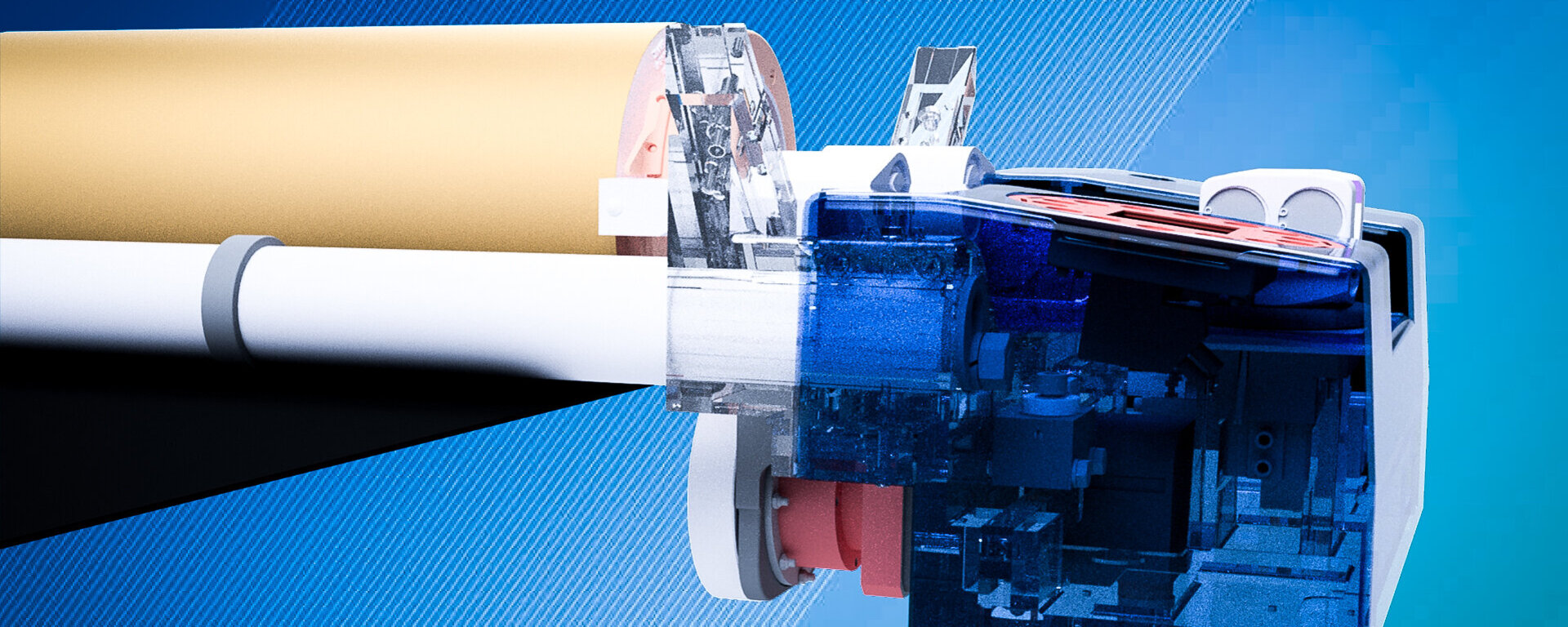

      DIGITAL SYNCHRONISATION

      Digital synchronization between the screens and the printing blanket drive ensures maximum printing accuracy at speeds of up to 120 meters per minute. Each printing station is equipped with its own servo motor for precise and reliable operation.

    • Open bearing print head with width adjustment, design memory & fast screen, pipe, rod change.

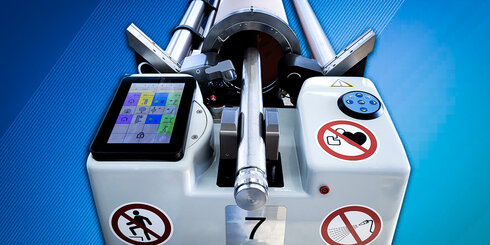

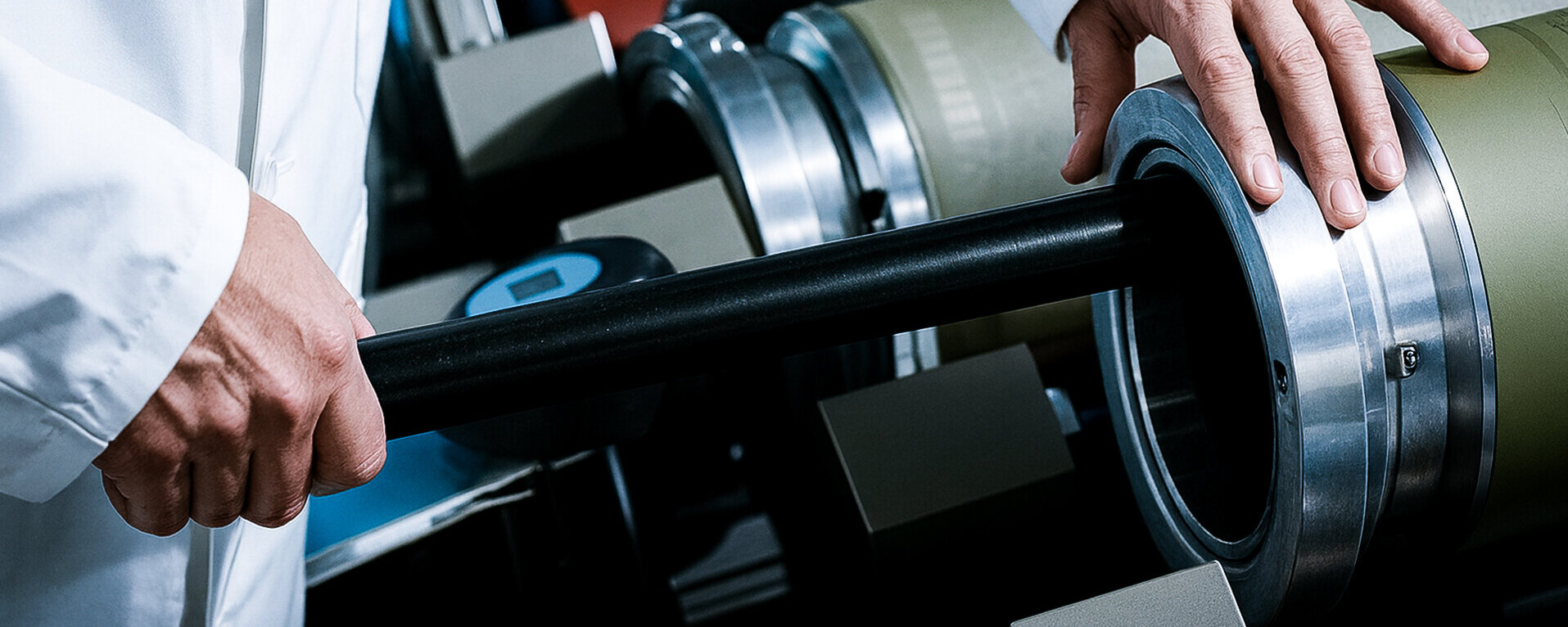

      OPEN BEARING PRINTING HEAD

      The unique width adjustment enables narrow printing on wider machines. Pre-repeat adjustment and integrated design memory simplify repeat orders. Screens, color pipes, and roll rods can be installed and changed simultaneously for maximum efficiency.

Technical Data

Available working widths

165 / 185 / 220 / 240 / 285 / 320 / 330 cm

Number of printing stations

Up to 24

Repeat size adjustment

From 64 cm to 120 cm

Printing speed

Up to 120 meters per minute

Color pipes

Kombiroll magnet roll squeegee;
Variocolor magnet roll squeegee;
Variocolor magnet blade squeegee;
Mechanic blade squeegee;

Dryer

Various dryer layouts for all kinds of fabrics

APPLICATIONS

The ROTASCREEN delivers high-speed rotary screen printing for home textiles, wall coverings, technical fabrics, nonwovens and more.

Home
Textile

Home Textiles by ZIMMER AUSTRIA: Our advanced digital, rotary and flatbed printing plus coating and finishing systems create vibrant, durable fabrics for upholstery, curtains, bed linen and tableware – with flexible drying, steaming and wet finishing options.

Apparel, Knits &
Clothing

ZIMMER AUSTRIA transforms the apparel market with bespoke digital and screen printing for menswear, womenswear, childrenswear, underwear and sleepwear. With COLARIS, ROTASCREEN, MAGNOPRINT, THERMOCURE, MODUS and MAGNOROLL, we deliver precision, durability and standout fashion quality.

Terry
Products

ZIMMER AUSTRIA delivers premium printing solutions for terry towels, bathmats and bathrobes. With COLARIS, MAGNOPRINT, ROTASCREEN, THERMOCURE and MODUS, you achieve aesthetic yet functional designs on terry fabrics – perfect for luxury bathroom and beach products.

Pile
Fabrics

ZIMMER AUSTRIA delivers advanced printing solutions for blankets, plush and fleece. With ROTASCREEN, MAGNOPRINT, COLARIS, THERMOCURE and MODUS, you achieve crisp designs and vibrant colors that stand out beautifully on soft, fluffy materials.

Technical
Textiles

ZIMMER AUSTRIA provides specialized solutions for technical textiles in industries such as Buildtech, Clothtech, Hometech, Agrotech and Geotech. With ROTASCREEN, MAGNOPRINT, COLARIS, MAGNOROLL, THERMOCURE and MODUS, we deliver proven systems for printing, coating and finishing.

Military
Textiles

ZIMMER AUSTRIA provides customized solutions for military textiles – from uniforms to performance and armor fabrics. With ROTASCREEN, MAGNOPRINT, COLARIS, MAGNOROLL, THERMOCURE and MODUS, we ensure robust printing, durable coatings and precise finishing for the defense industry.

Interior of a modern car with a printed headliner

Nonwoven
Products

Nonwoven fabrics are versatile materials used in applications from geotextiles to wipes, valued for their ecological advantages. With ROTASCREEN, MAGNOPRINT, COLARIS, MAGNOROLL, THERMOCURE and MODUS, we deliver proven systems for printing, coating and finishing.

Woman with birthday cake and gifts wrapped in decorative paper

Paper
Solutions

ZIMMER AUSTRIA offers advanced printing solutions for wrapping paper, food industry, transfer paper, automotive filter and card board lamination. ROTASCREEN machines for high repeat accuracy in large-scale production. Zimmer delivers customized technologies for the paper industry.

Colorfull Wall Covering in a living room

Wall
Covering

ZIMMER AUSTRIA provides advanced printing solutions for wall coverings and wallpapers. The ROTASCREEN lines, will ensure high repeat accuracy and efficient large-batch production, delivering top-quality results for interior decoration.

Combining Tradition with Innovation

MAGNET SYSTEM PLUS
ROLL ROD TECHNOLOGY

ROTASCREEN printing machines with ZIMMER MAGNET SYSTEM PLUS are designed in modular constructions, in order to ensure high quality results with single- or multi-colour printing on different substrates.

Take advantage of pioneering ZIMMER AUSTRIA technologies like the world-famous MAGNET SYSTEM PLUS ROLL ROD TECHNOLOGY. This innovation combines the benefits of the Magnet System with the traditional Blade technique and ensures uniform application across the full working width.
